Standard Features for Generator Connection Cabinets

Quick Links: Crouse-Hinds E1016 Series 400A Cam-Loks Default | Mechanical Set Screw Lugs – Alternate | Aluminum Cabinet | External Mounting Ears on Wall-Mount | Locking Lift Catch | Padlockable Door Catch | Cover Security Bolt | NEMA 3R Bolted Construction | Safety & Information Labels | Silver Plated Copper Bus | UL Listed

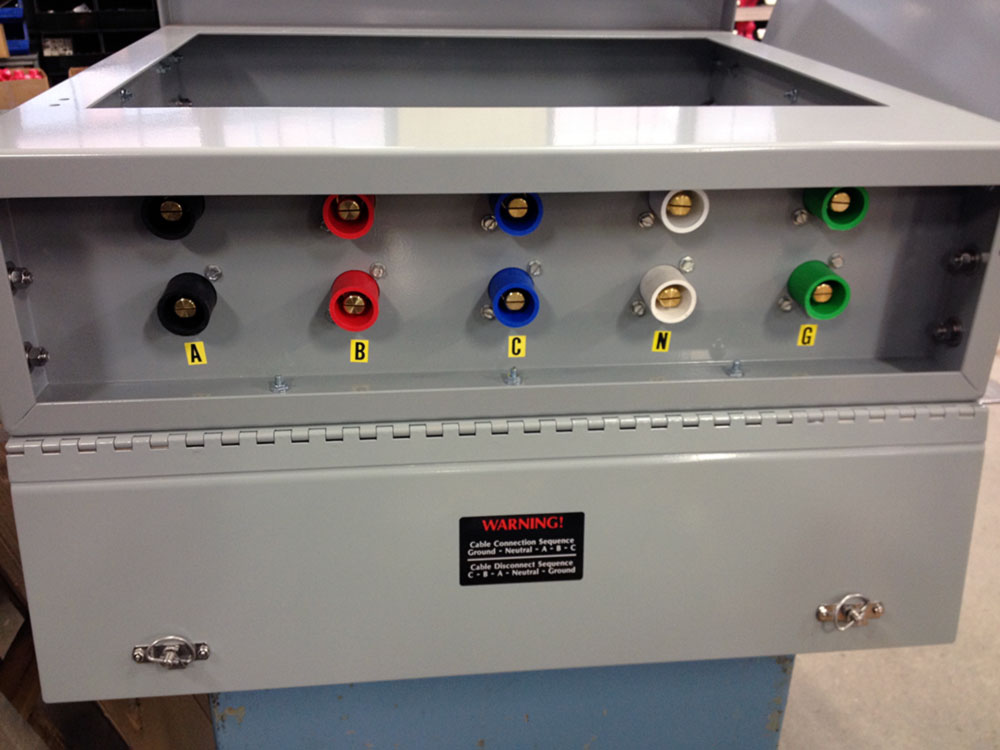

Crouse-Hinds E1016 Series 400A Cam-Loks (Default)

The industry standard for single pole connectivity, Cam-Loks provide the ultimate in safety, speed, and ease of connection. Most rental generators come equipped with female Cam-Loks on their output cables, ready to connect to a Generator Connection Cabinet with standard male Cam-Loks. This is by far the most common method of connecting a portable generator or load bank.

Downloads: Cam-Lok catalog cut sheet

crouse-hinds-E1016-400A-camloks-default

[Show slideshow]

Back to Top

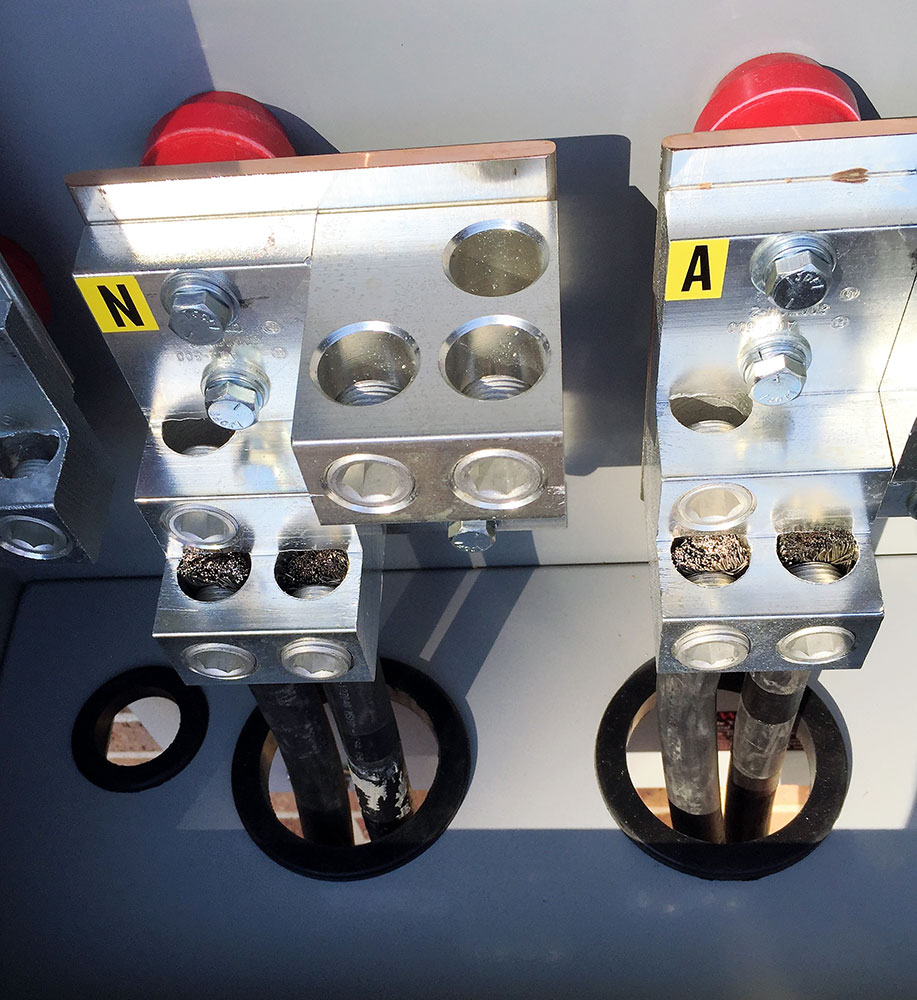

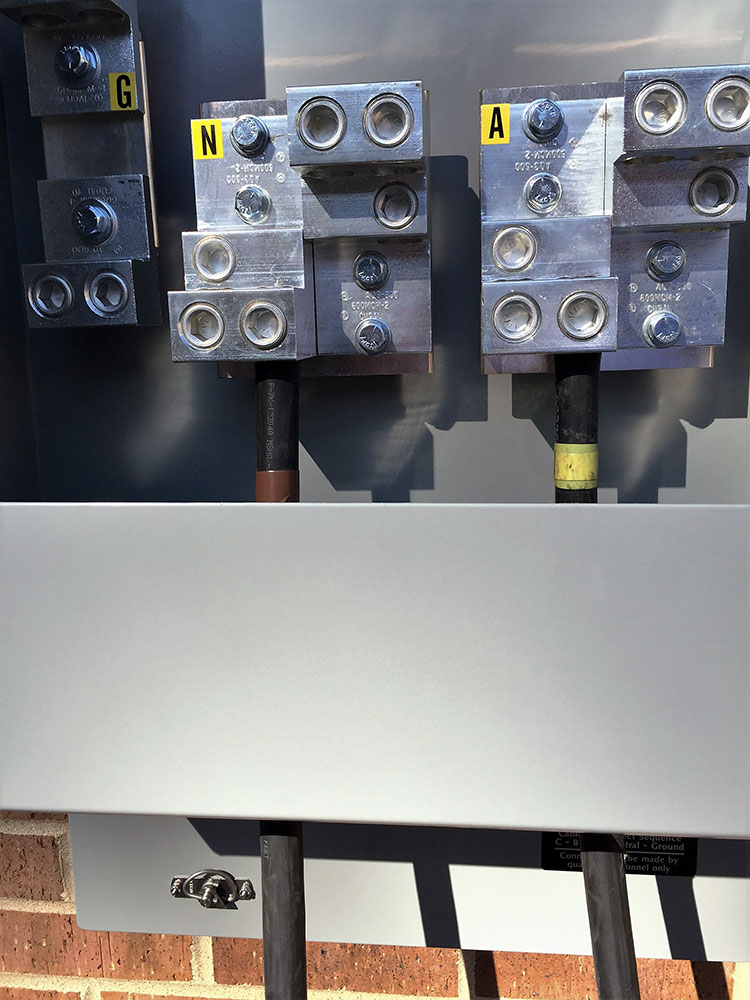

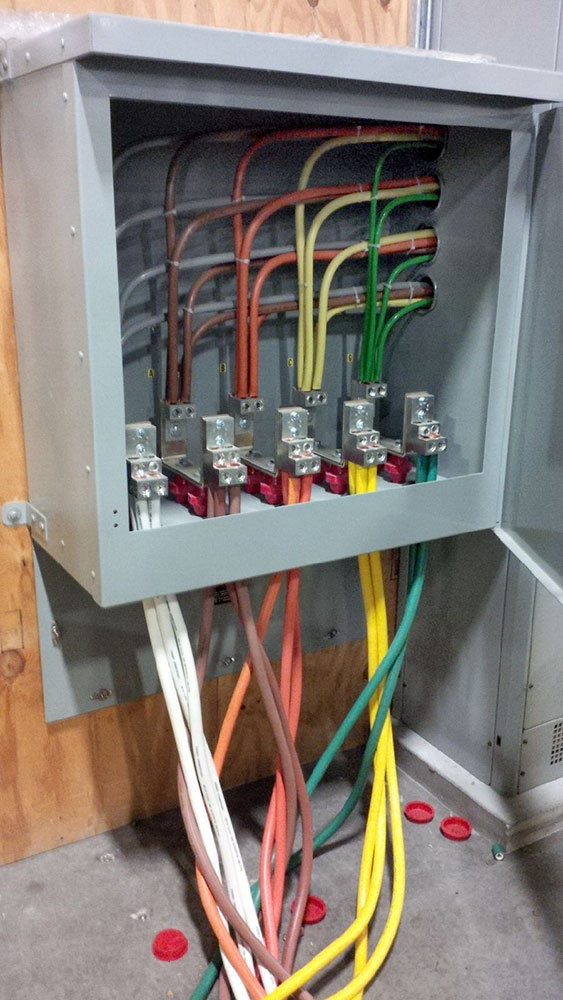

Mechanical Set Screw Lugs (Alternate)

Cam-Loks not available on your portable generator? No problem – choose mechanical set screw lugs for a bare cable connection. This type of connection typically takes longer than Cam-Loks and requires a tool (hex wrench).

W16-5S-S9-01
W08-5S-S9-02
W08-5S-S9-03

[Show slideshow]

Back to Top

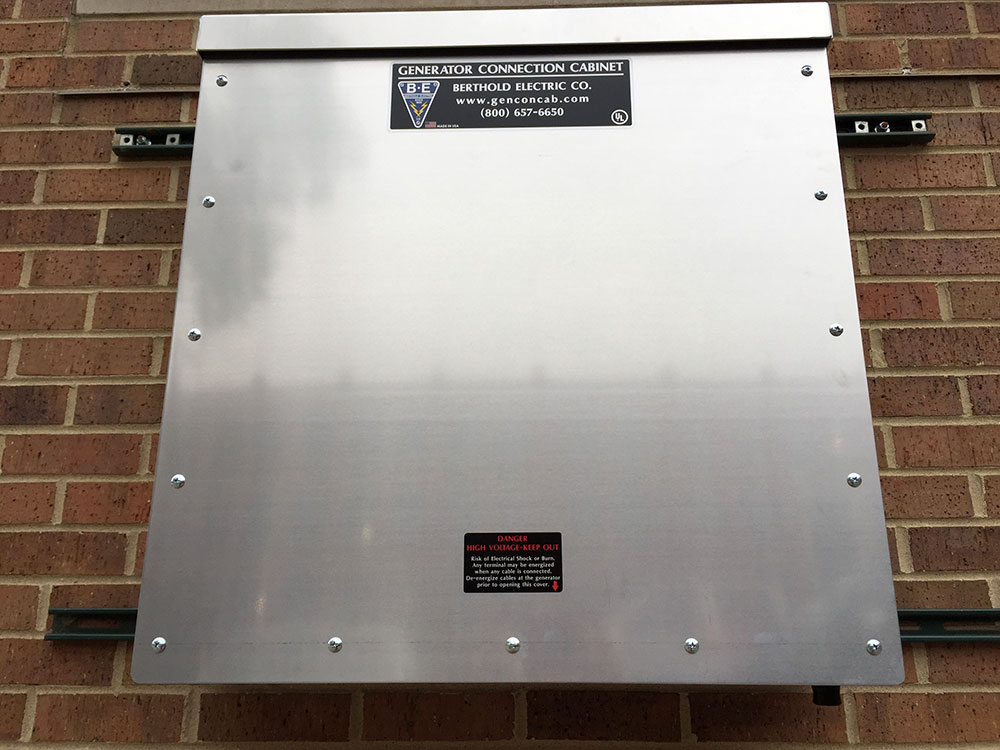

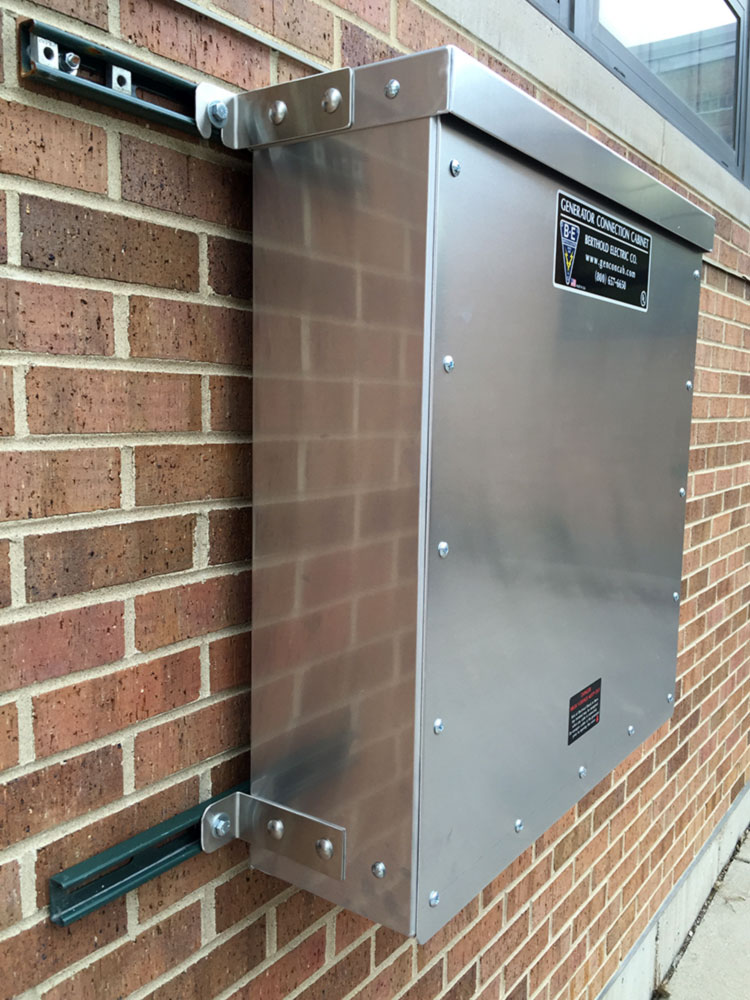

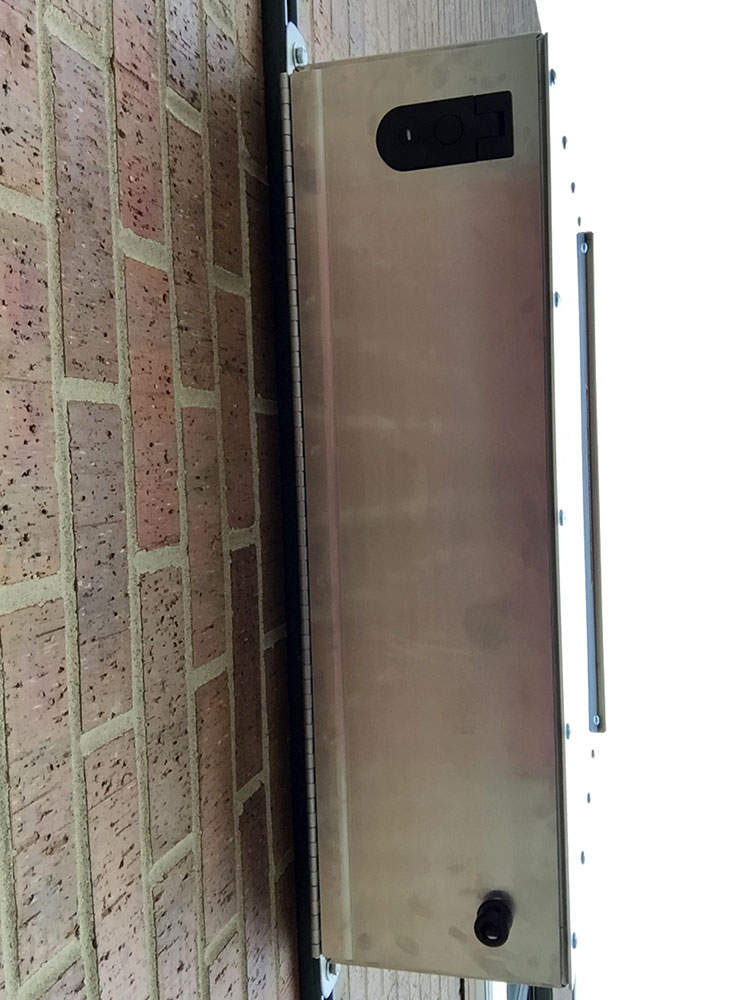

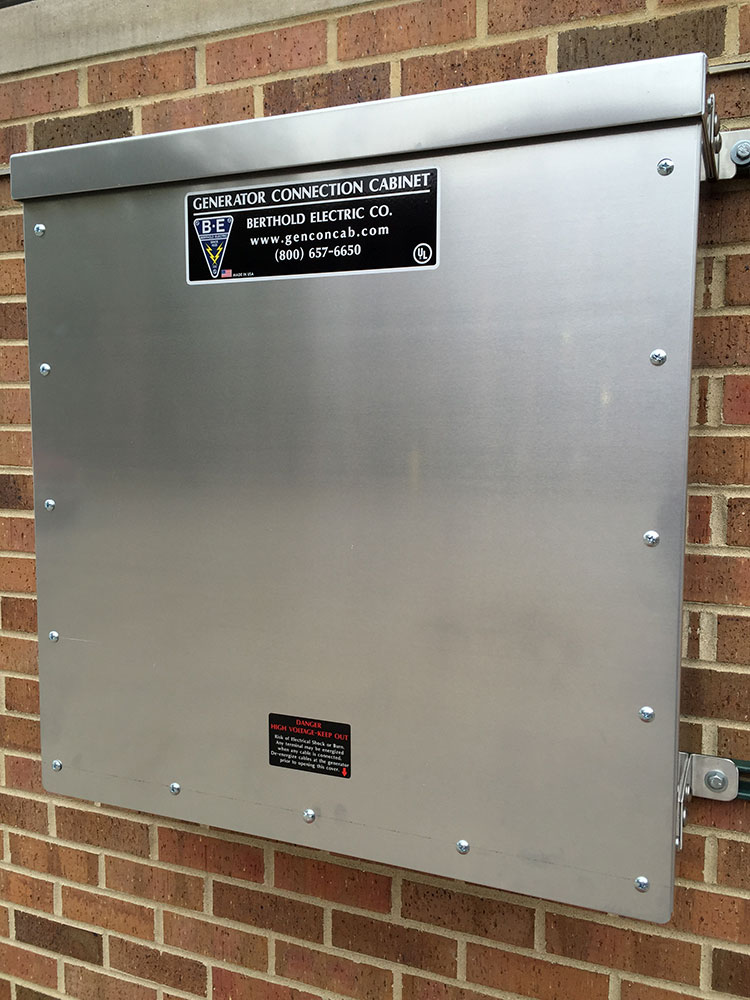

Aluminum Cabinet

Corrosion resistant material looks great and is suitable for general outdoor use. Bare aluminum finish matches other equipment such as utility metering cabinets and service heads.

aluminum-cabinet-01
aluminum-cabinet-02
aluminum-cabinet-03
aluminum-cabinet-04

[Show slideshow]

Back to Top

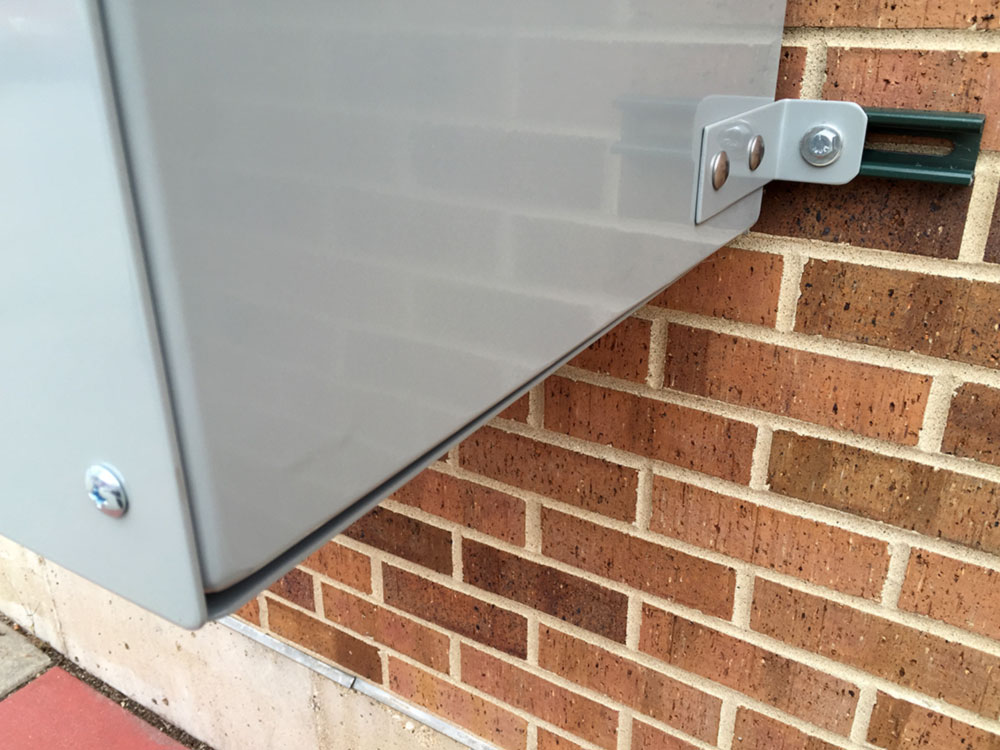

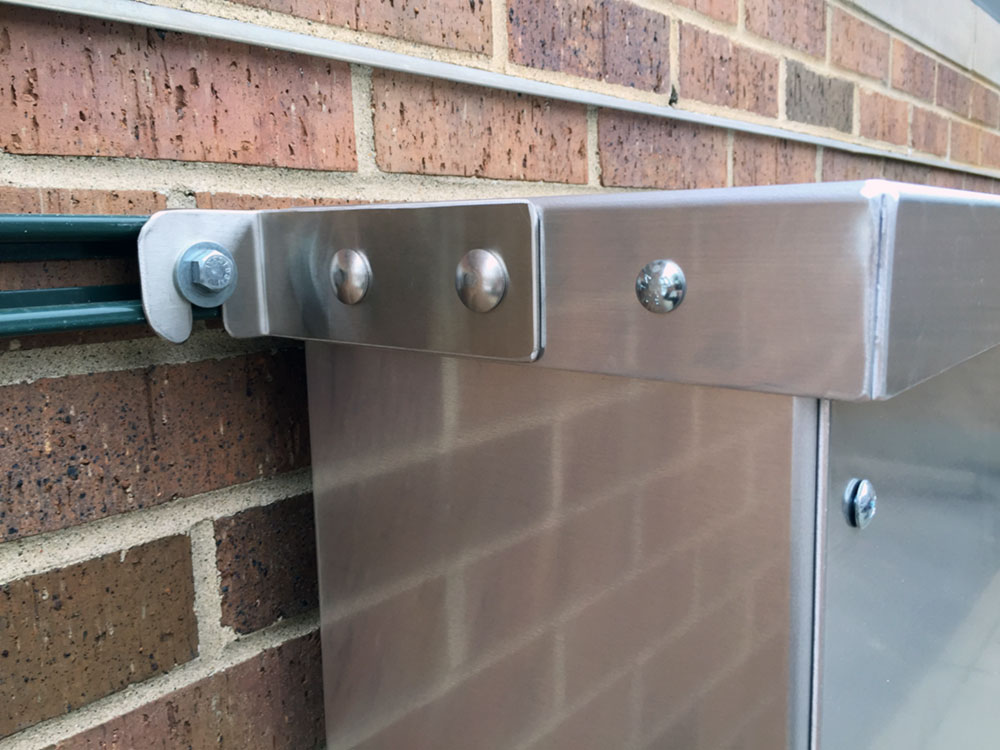

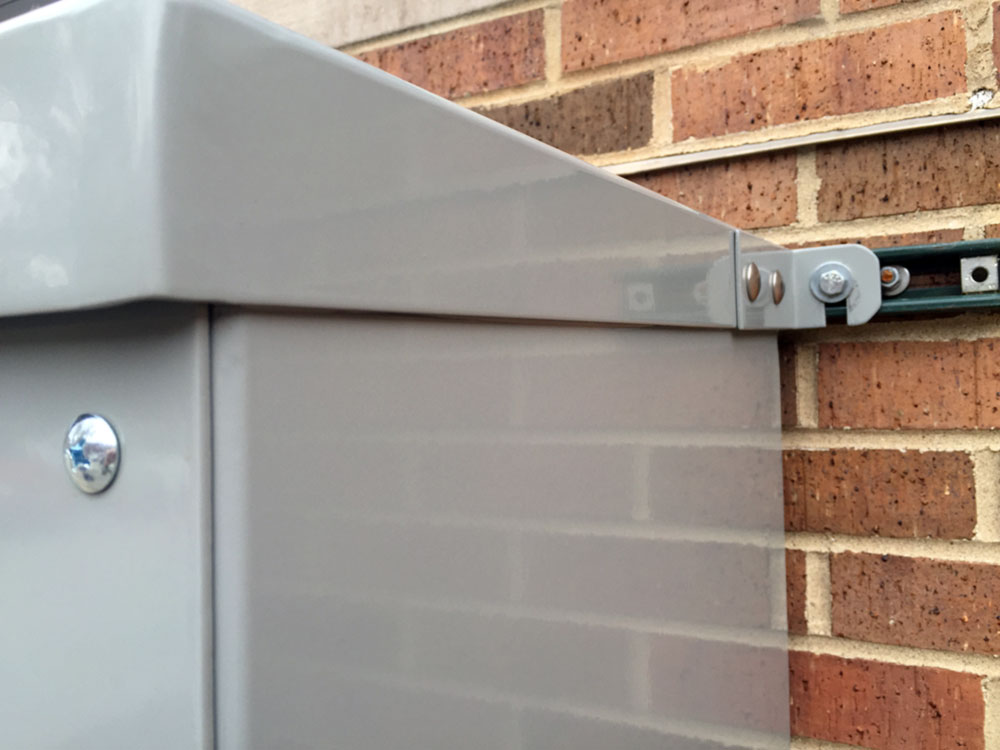

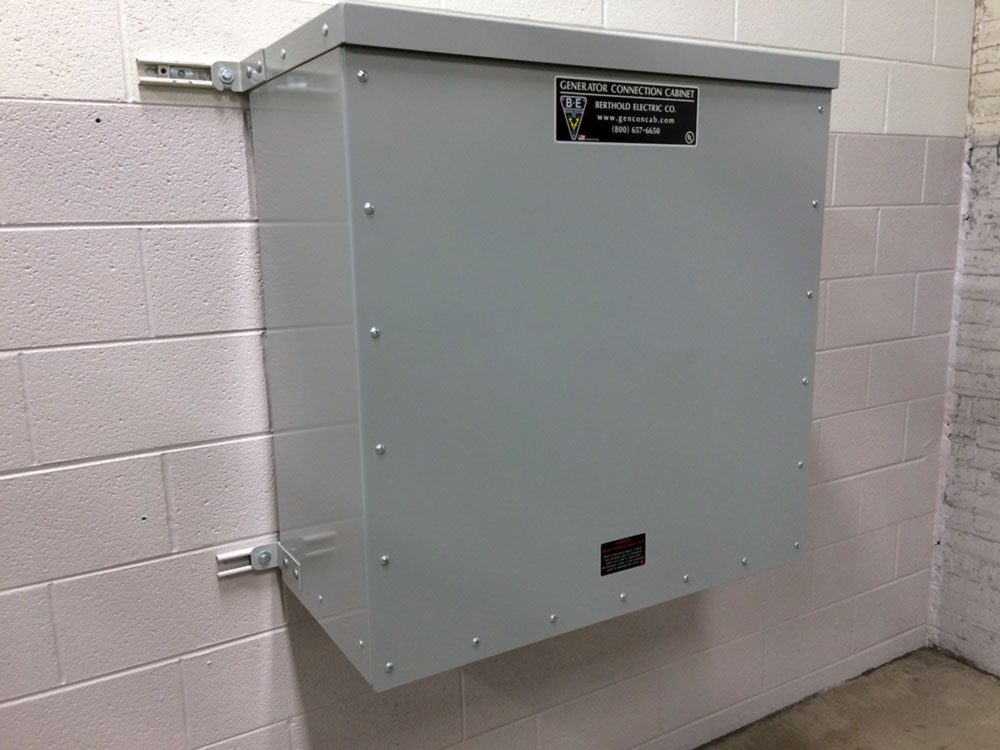

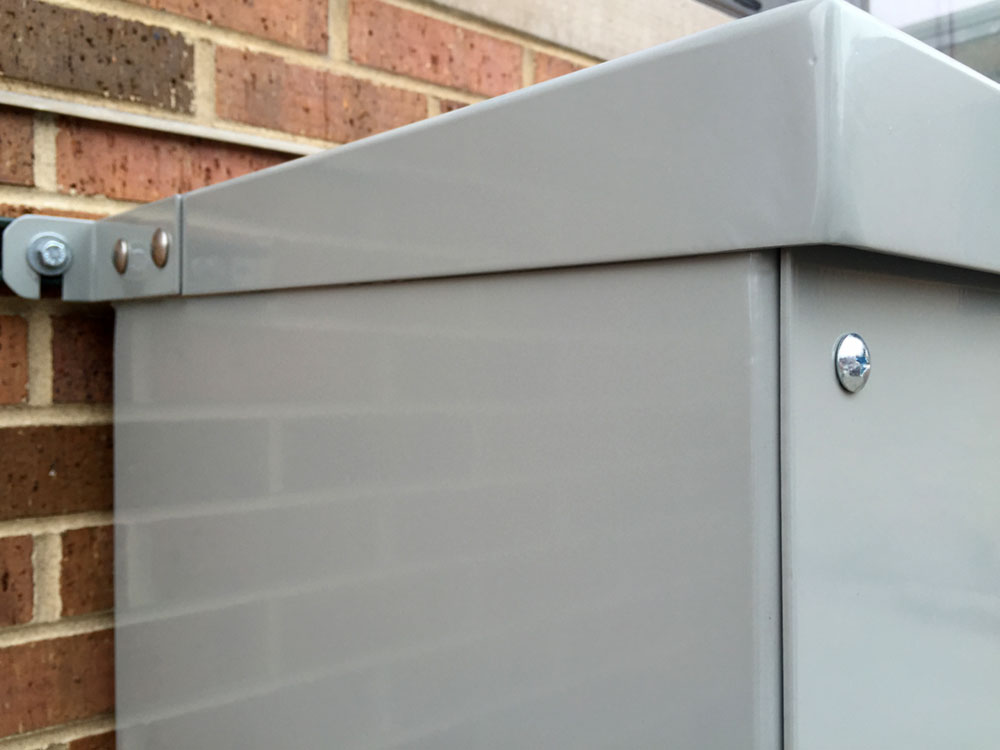

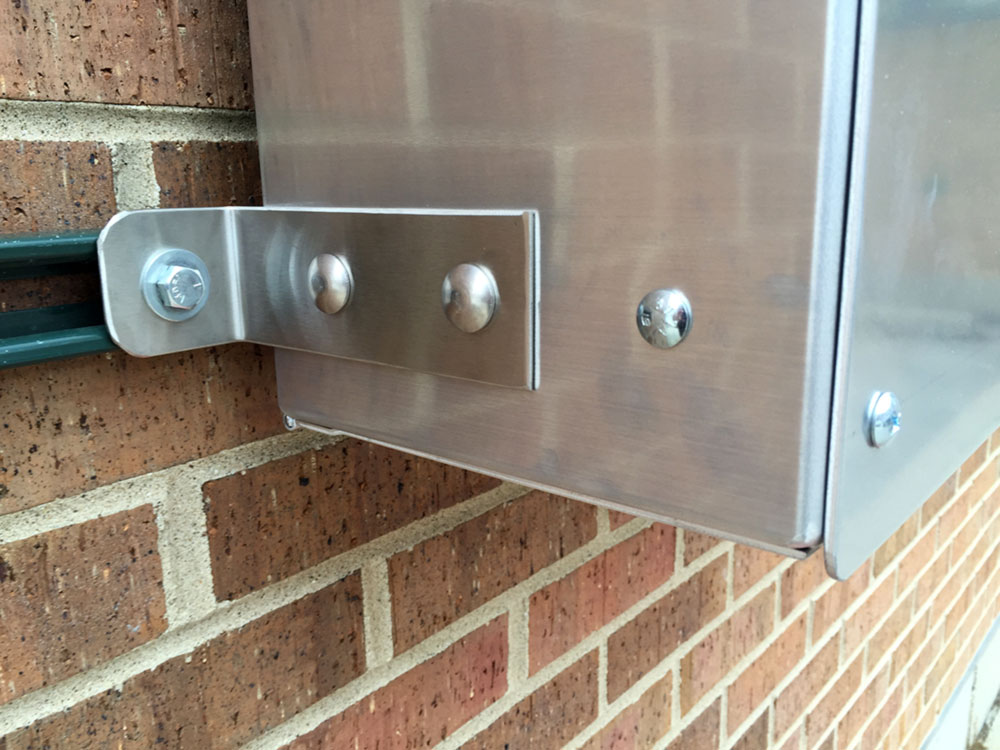

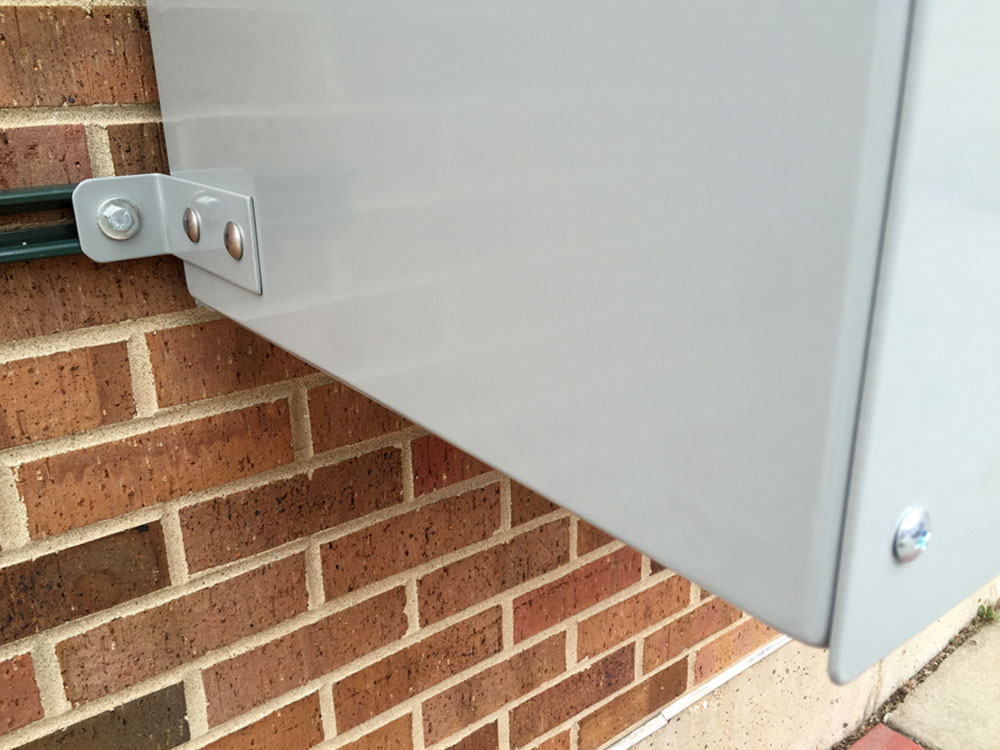

External Mounting Ears on Wall-Mount

Mount to strut or directly to the wall. Open slots on upper ears for ease of installation.

external-mounting-wall-mount-01
external-mounting-wall-mount-02
external-mounting-wall-mount-03
external-mounting-wall-mount-04
external-mounting-wall-mount-05
external-mounting-wall-mount-06
mounting-wall-mount-07

[Show slideshow]

Back to Top

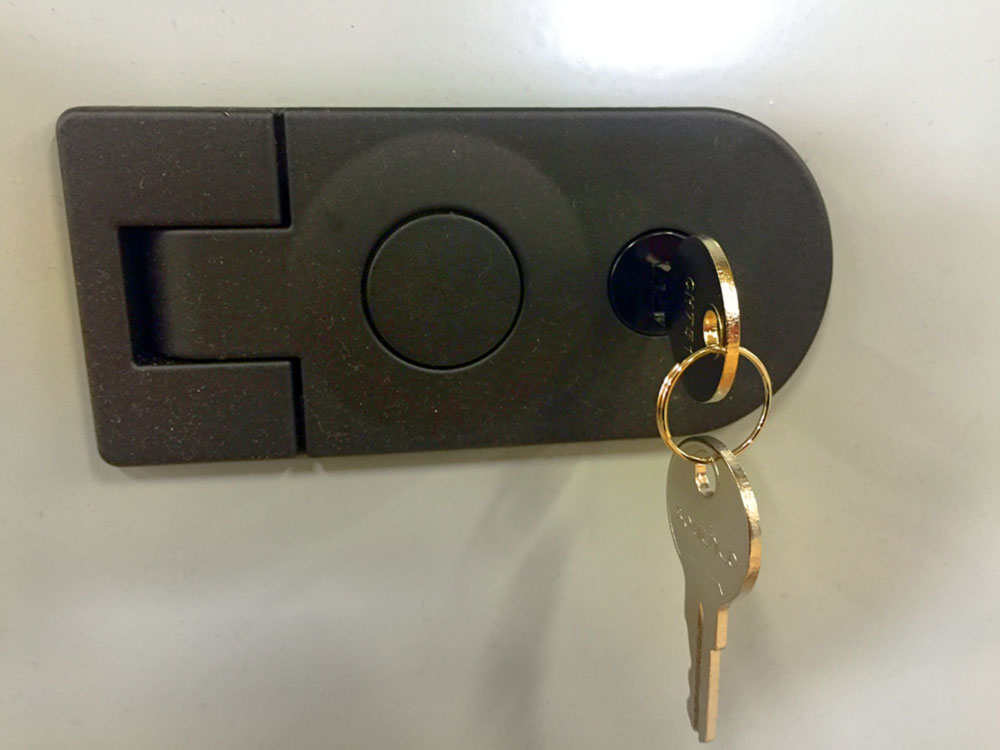

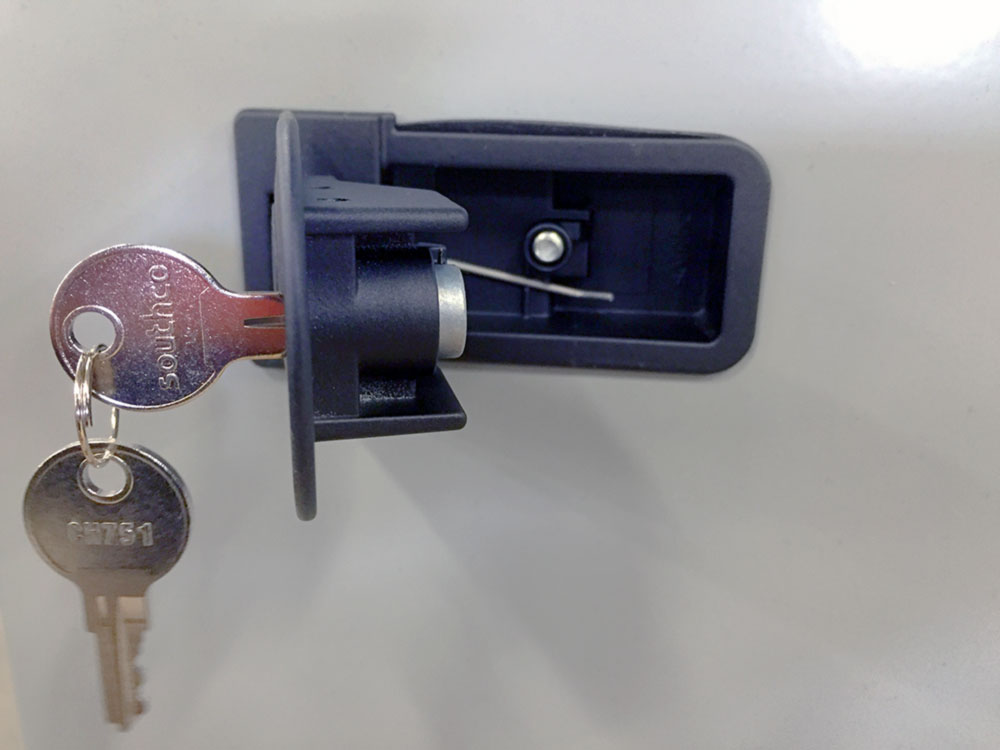

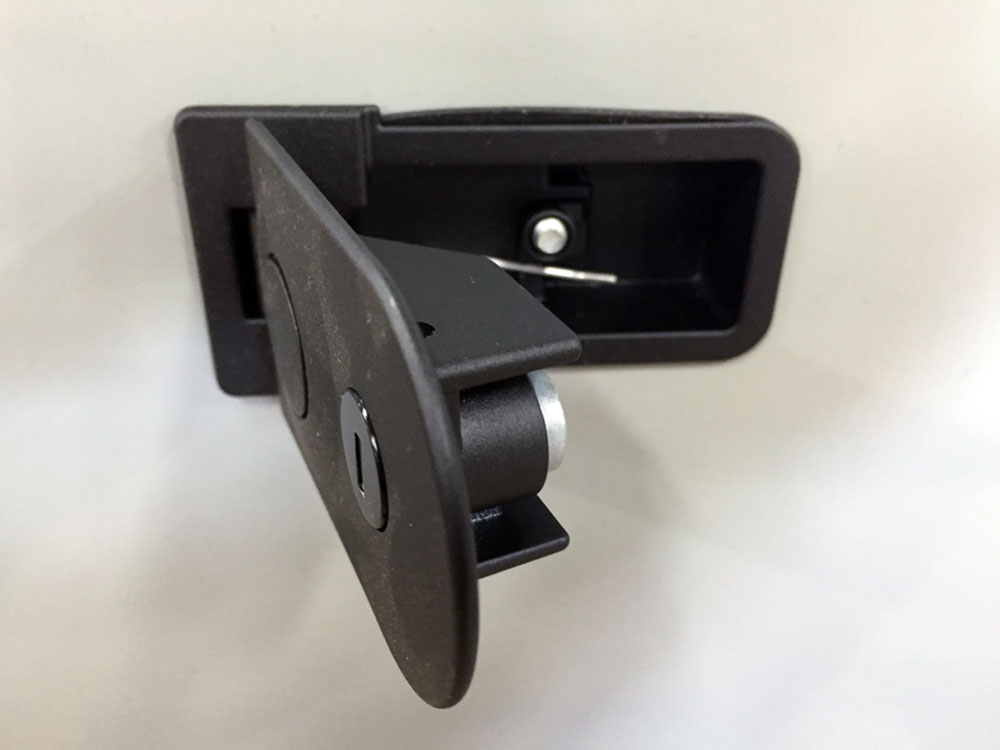

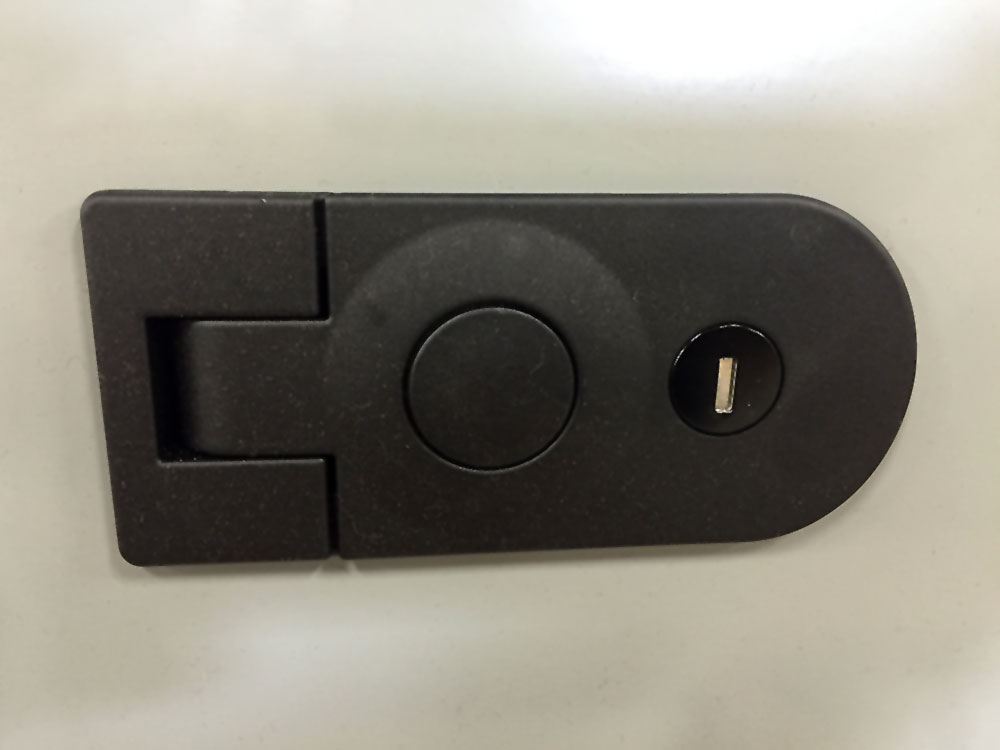

Locking Lift Catch

Flush locking latch (2 keys included) for security and ease of access.

locking-lift-catch-01
locking-lift-catch-02
locking-lift-catch-03
locking-lift-catch-04

[Show slideshow]

Back to Top

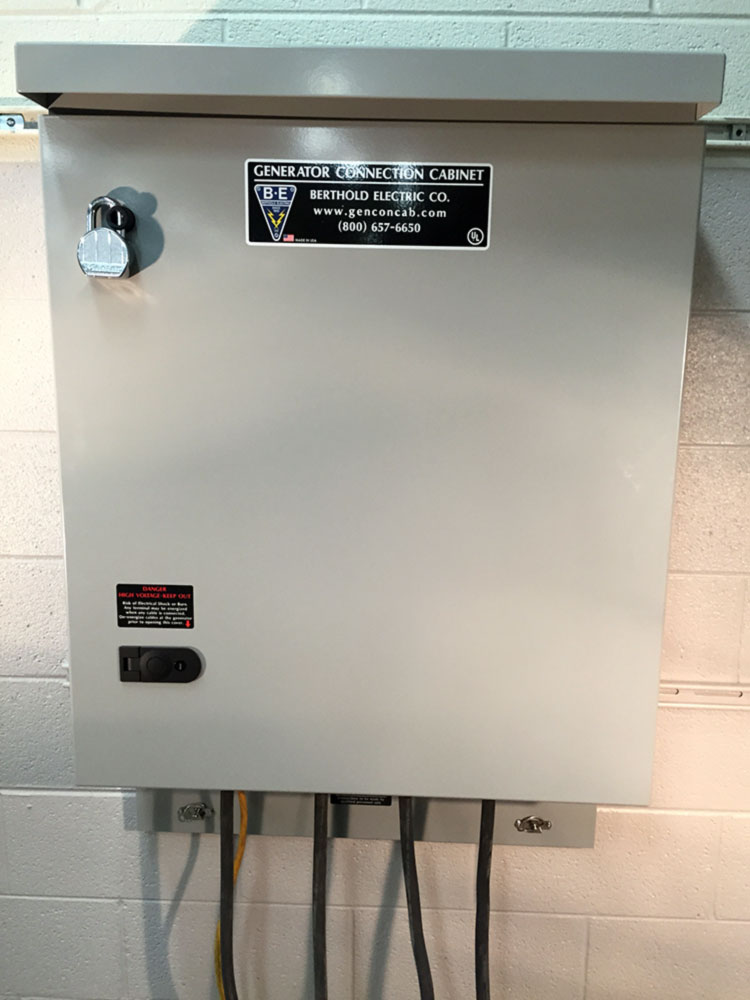

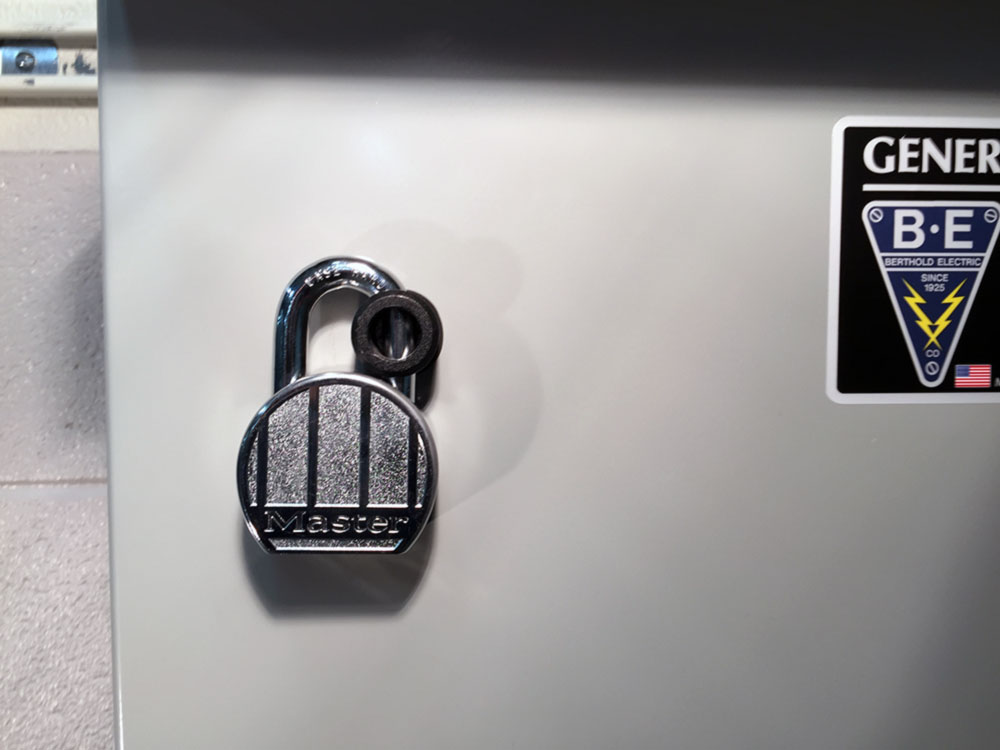

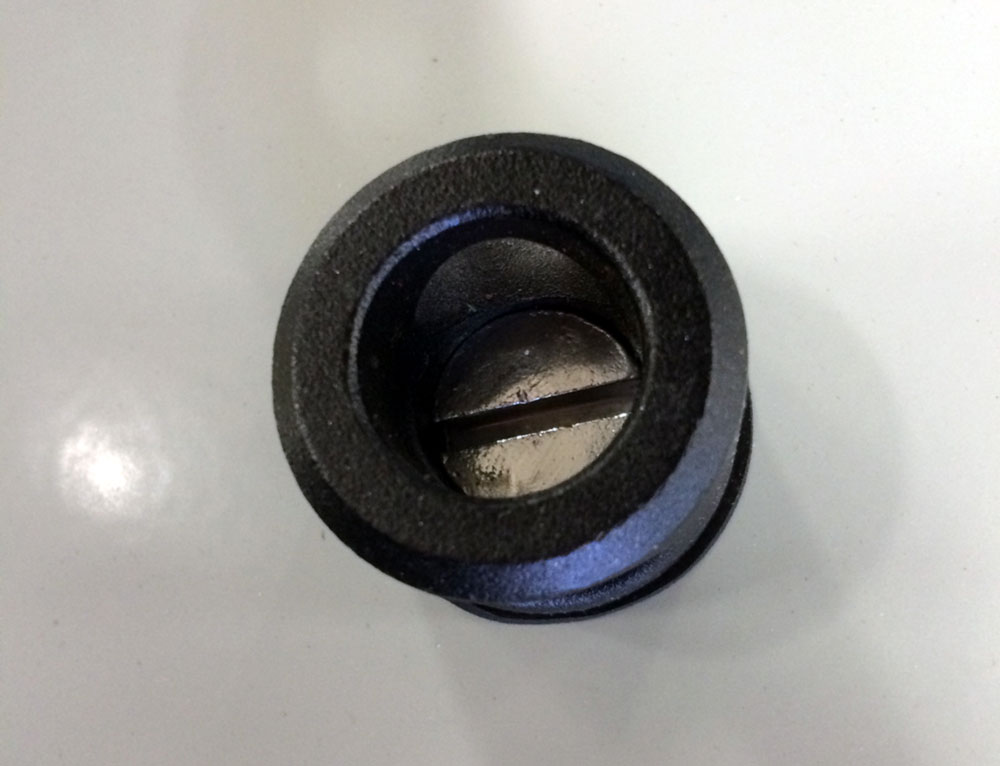

Padlockable Door Catch

In addition to the locking lift catch, we provide another door catch operated by 1/4 turn of a screwdriver. Provide your own padlock for additional security if desired.

padlock-door-catch-01
padlock-door-catch-02
padlock-door-catch-03

[Show slideshow]

Back to Top

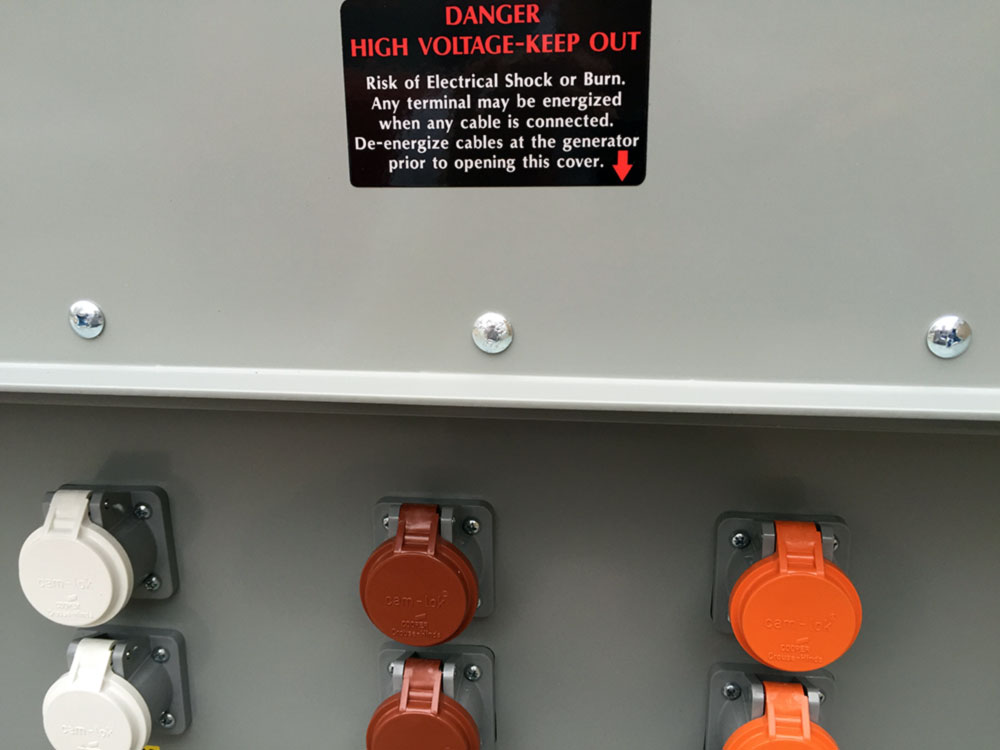

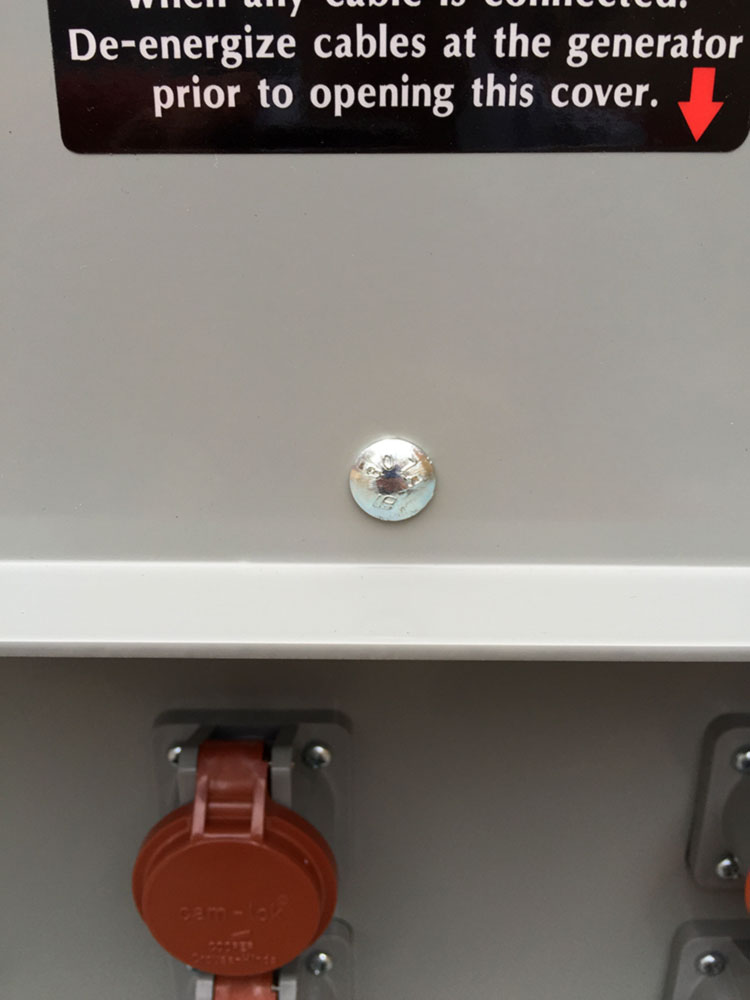

Cover Security Bolt

Installer access cover is screw-fastened for ease of removal, except for one carriage bolt which is nutted from the inside of the Cam-Lok compartment (top of cover is held captive by drip hood). This prevents unauthorized front cover removal when Cam-Lok access door is closed and locked.

cover-security-bolt-01
cover-security-bolt-02

[Show slideshow]

Back to Top

NEMA Type 3R Bolted Construction

Suitable for indoor or outdoor use, our cabinet maintains its NEMA 3R rating even with the access door open and temporary cables (from the portable generator) connected. Fastened with carriage bolts (nutted on the inside) for security and a clean appearance.

NEMA-3R-Bolted-Construction

[Show slideshow]

Back to Top

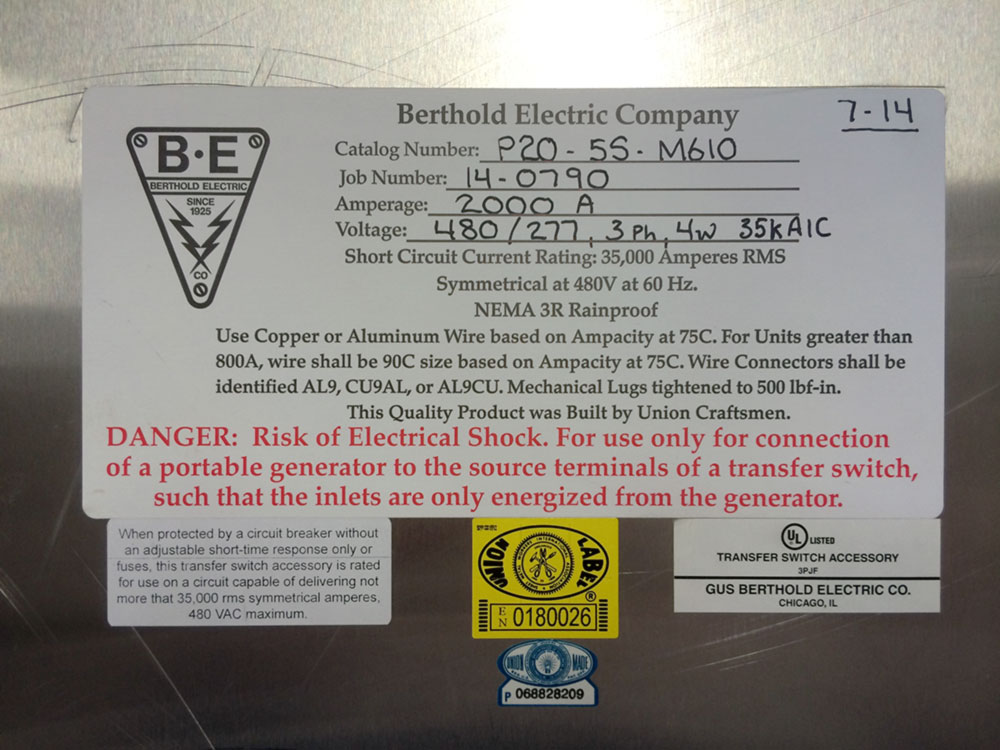

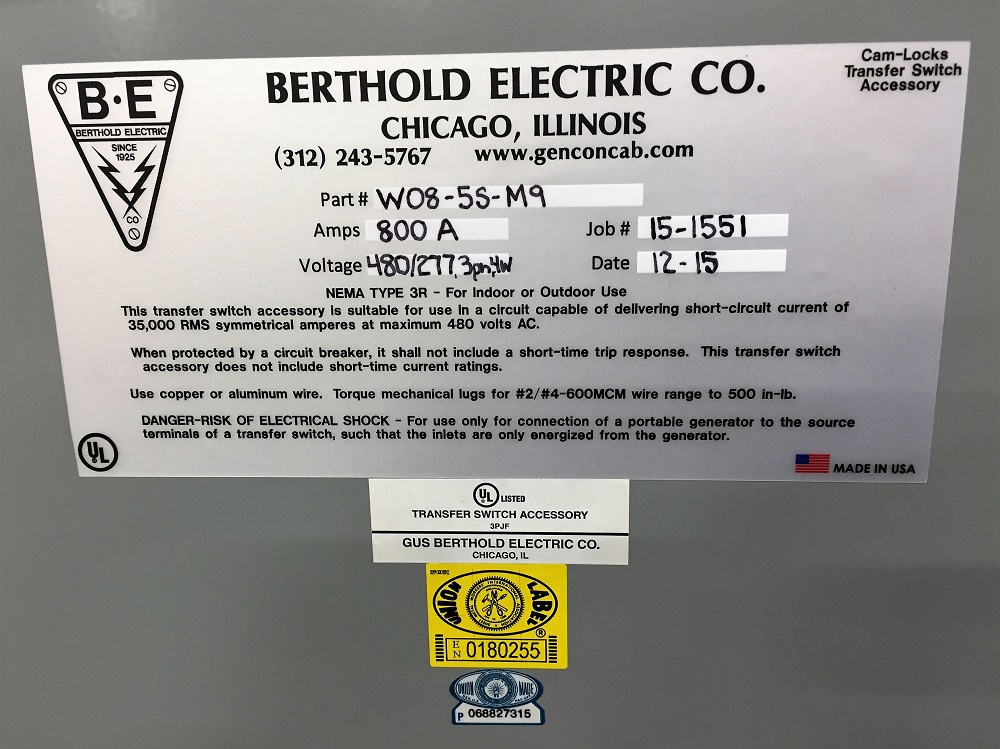

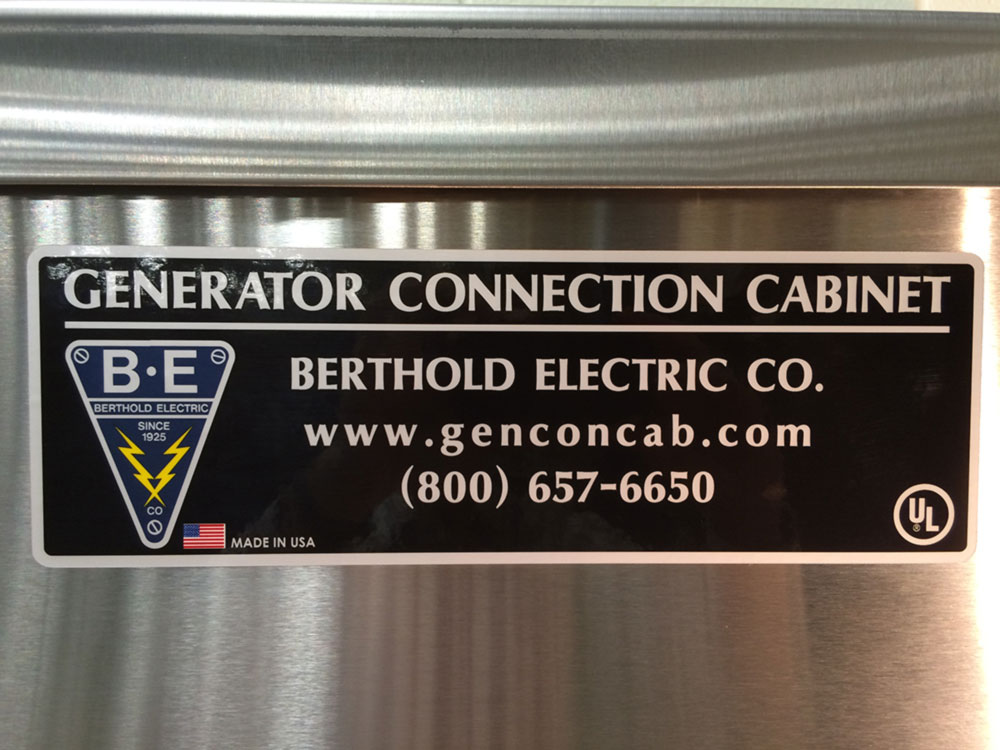

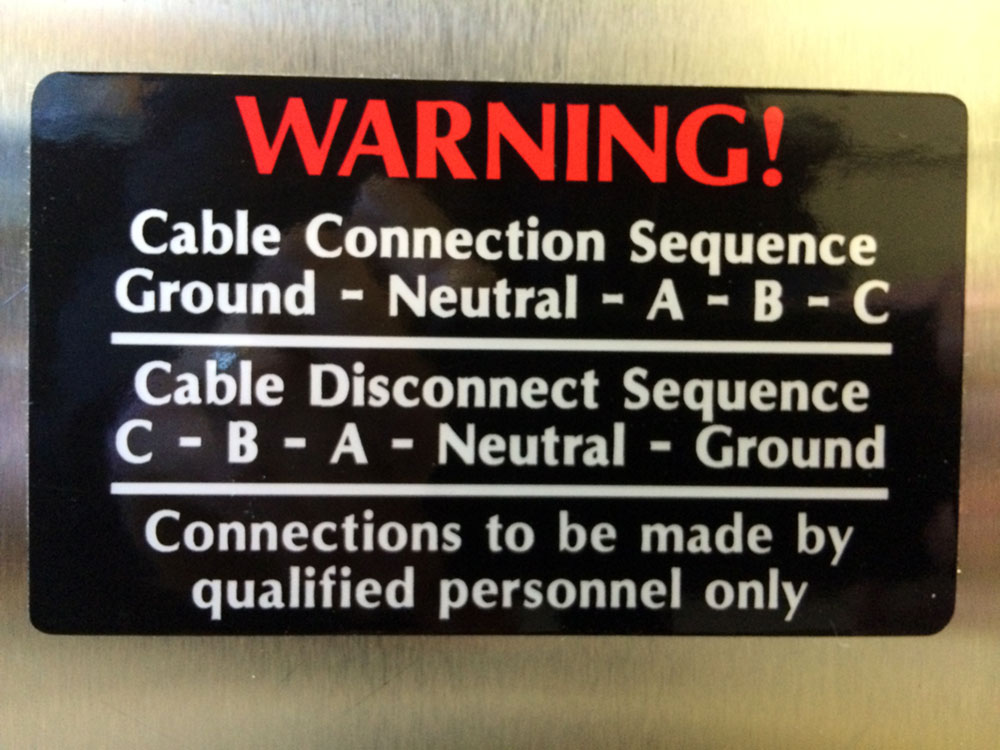

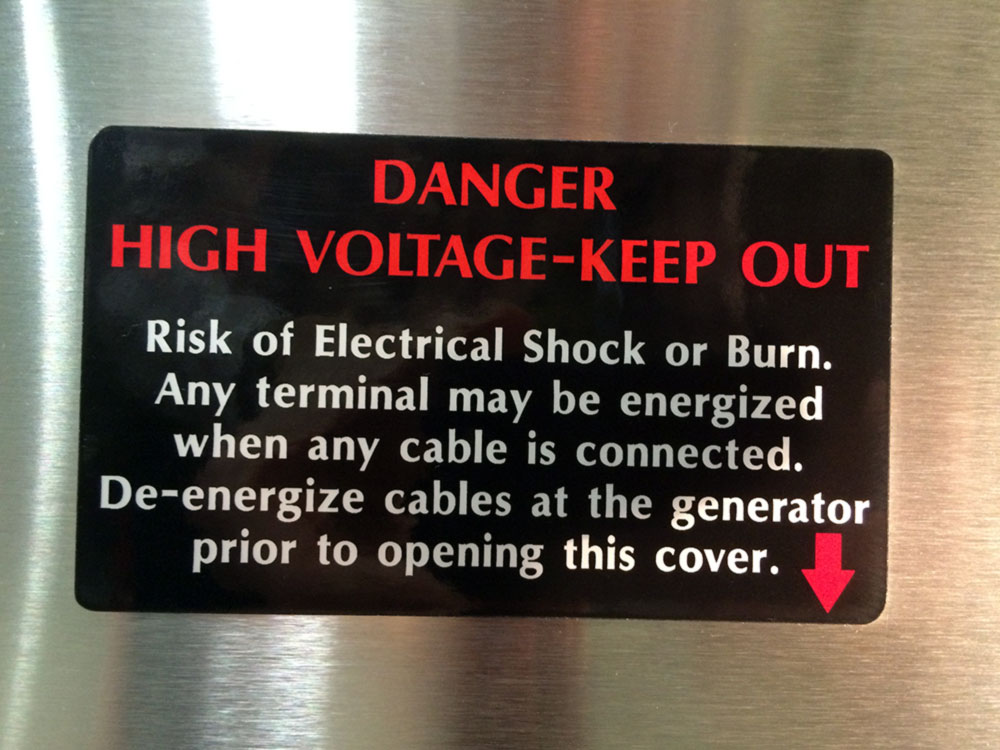

Safety & Information Labels

Weather-resistant labels stand up to harsh outdoor conditions and comply with all UL requirements.

safety-info-label-01
safety-info-label-02
safety-info-label-03
safety-info-label-04
safety-info-label-04a

[Show slideshow]

Back to Top

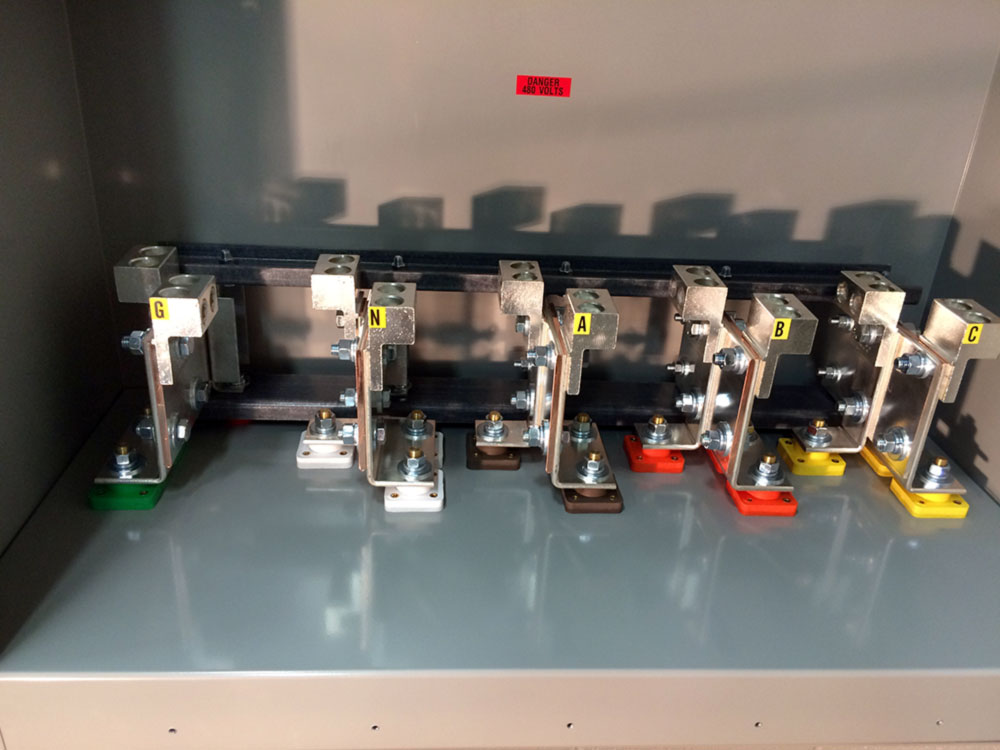

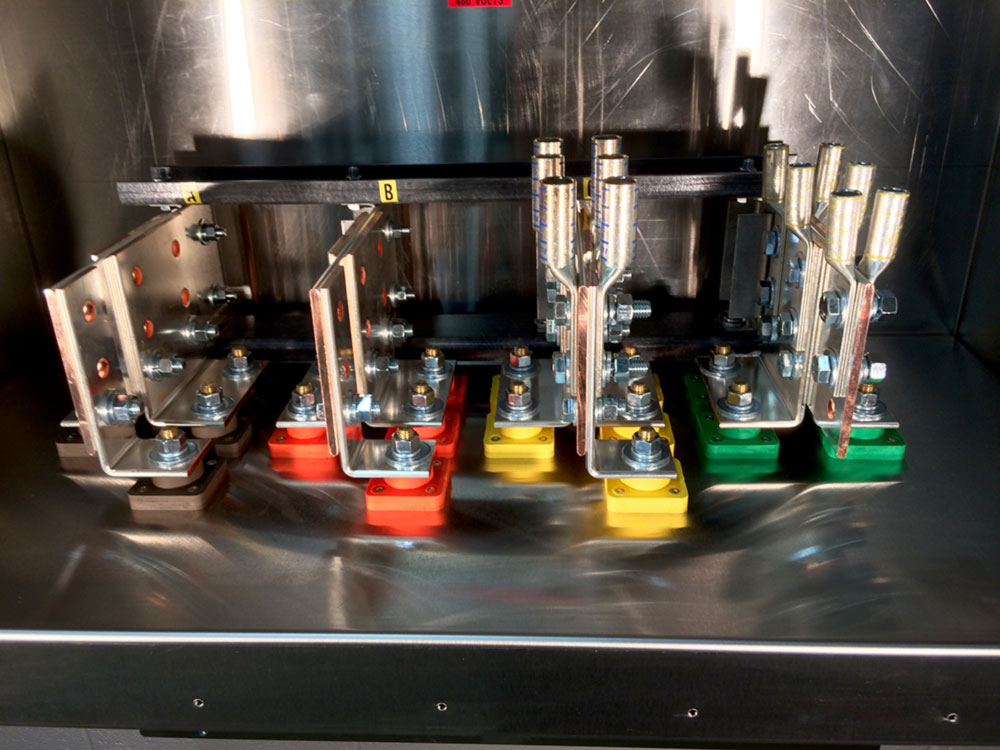

Silver Plated Copper Bus

Quality construction inside and out.

silver-plated-copper-bus-01
silver-plated-copper-bus-02

[Show slideshow]

Back to Top

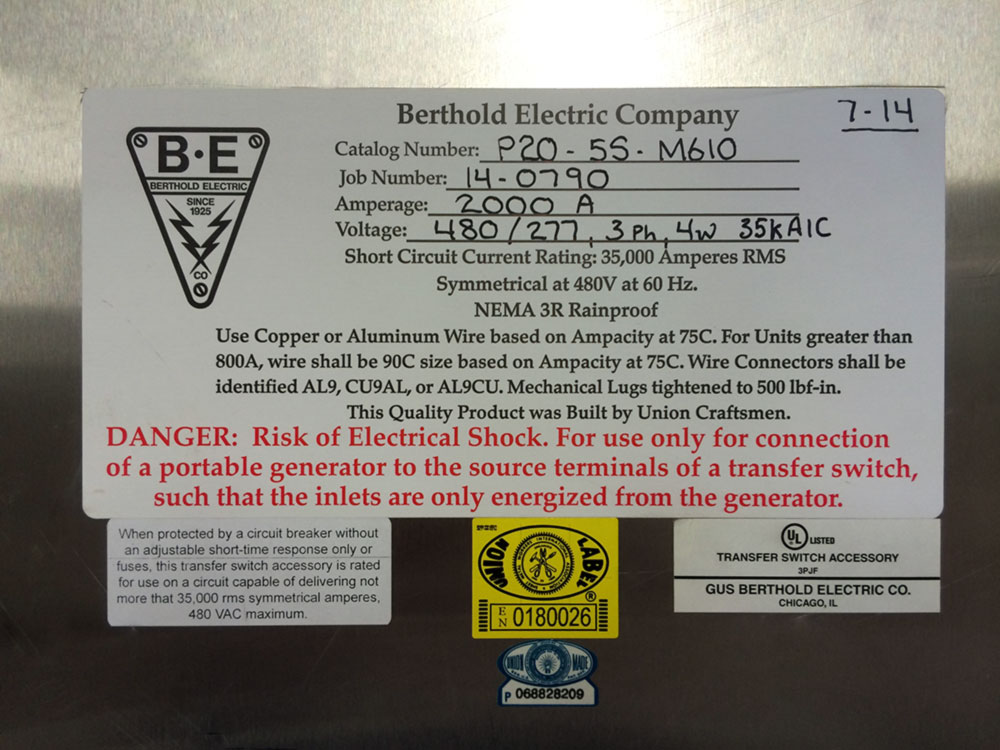

UL Listed

All our standard Generator Connection Cabinets are listed by Underwriters Laboratories. Learn more about why this matters: Why UL Listed?

Downloads: Berthold Electric UL1008 Certification | Berthold Electric UL1773 Certification

UL-listed
safety-info-label-04a

[Show slideshow]

Back to Top
