Pad Mounted Generator Connection Cabinet

Sample pad-mounted generator connection cabinet configurations. Click on any image to view full-size.

Quick Links: P08-5S-M69 | P08-4P-M169 | P12-3S-S | Product Specifications & Additional Information

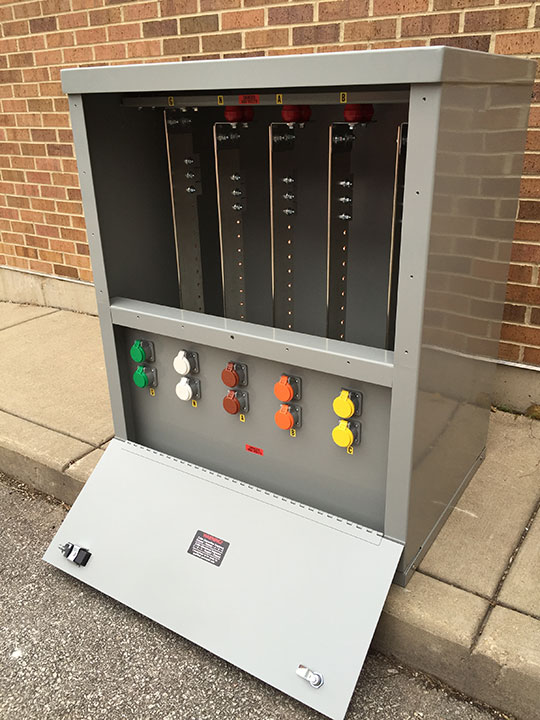

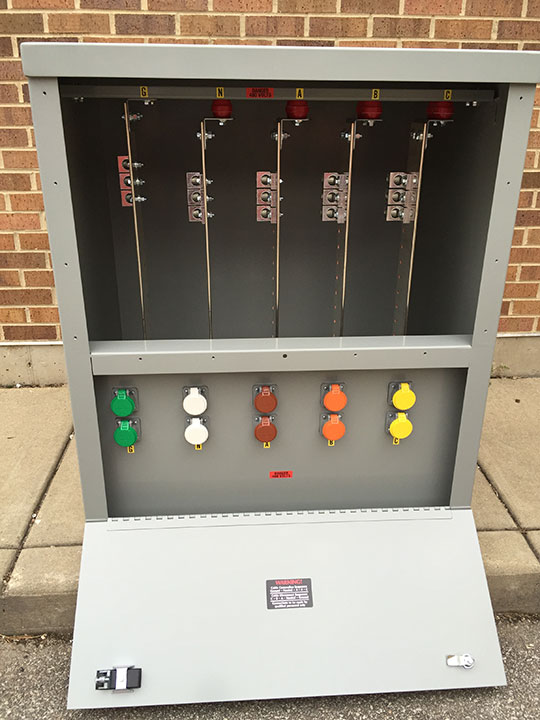

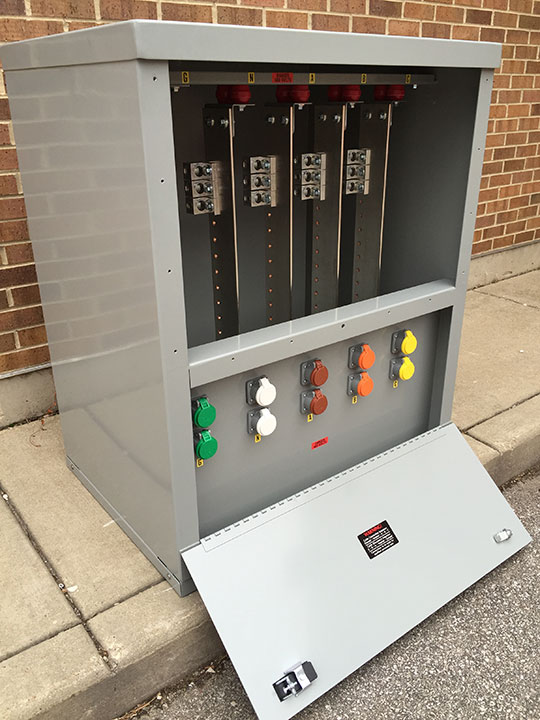

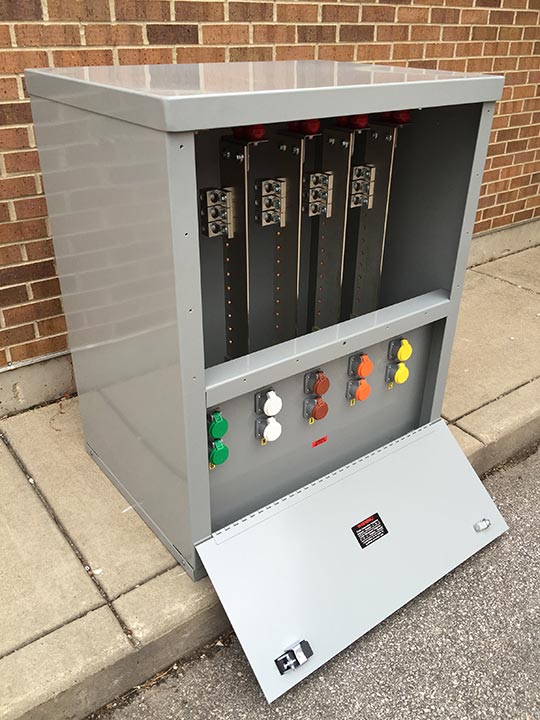

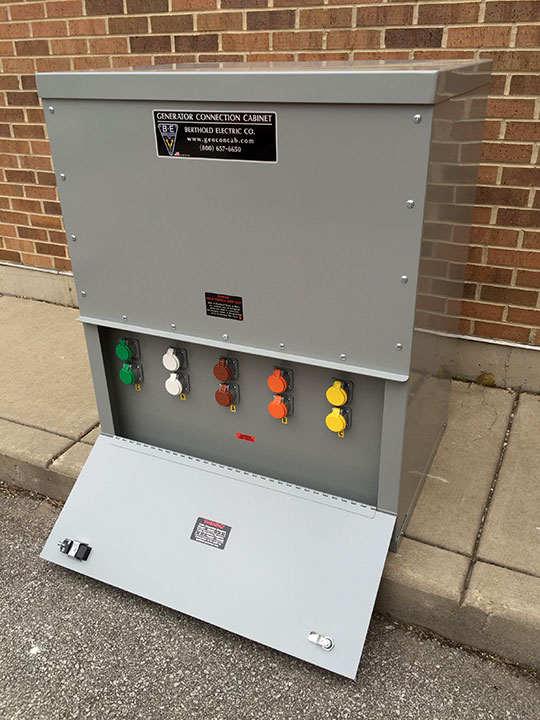

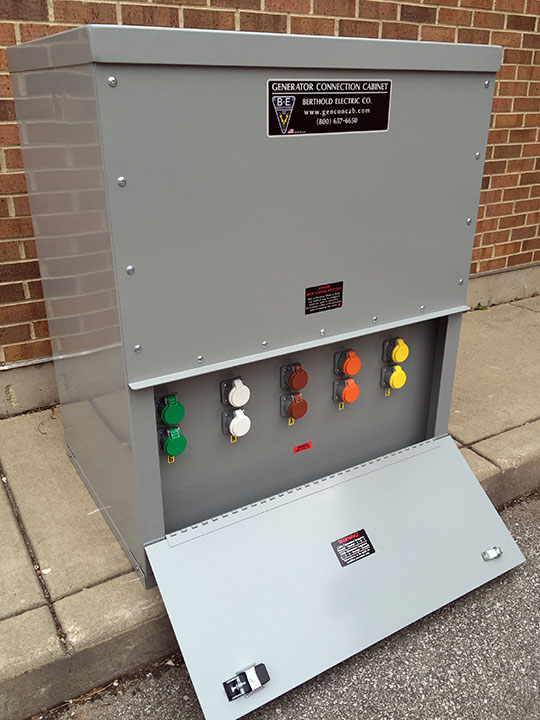

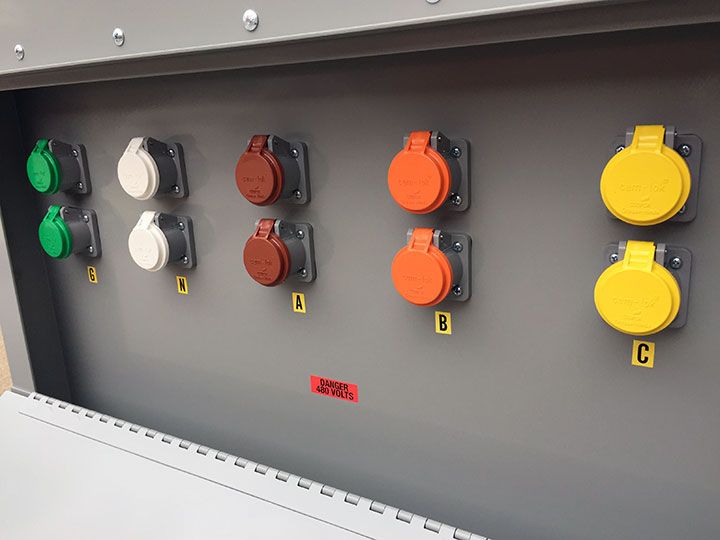

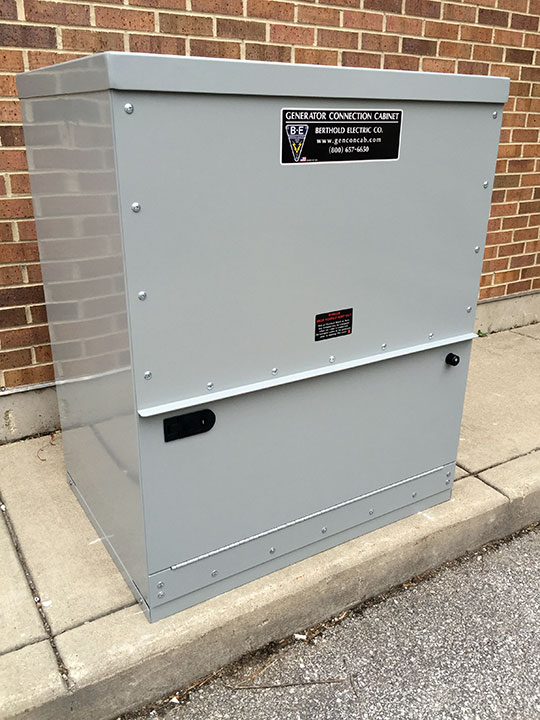

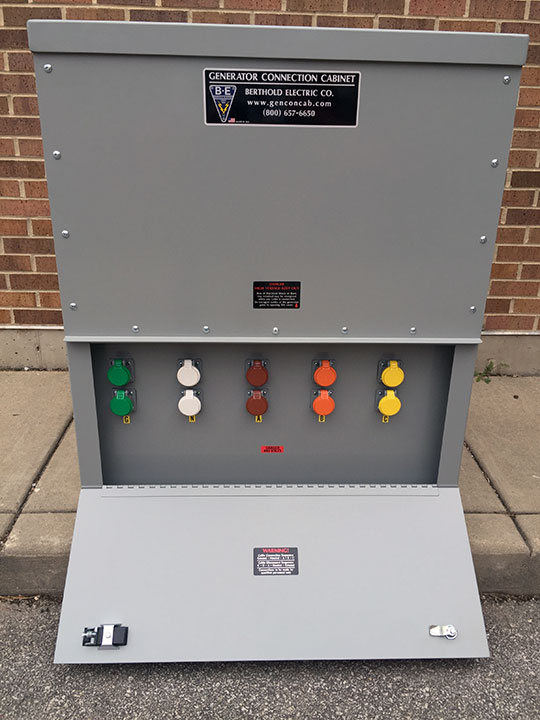

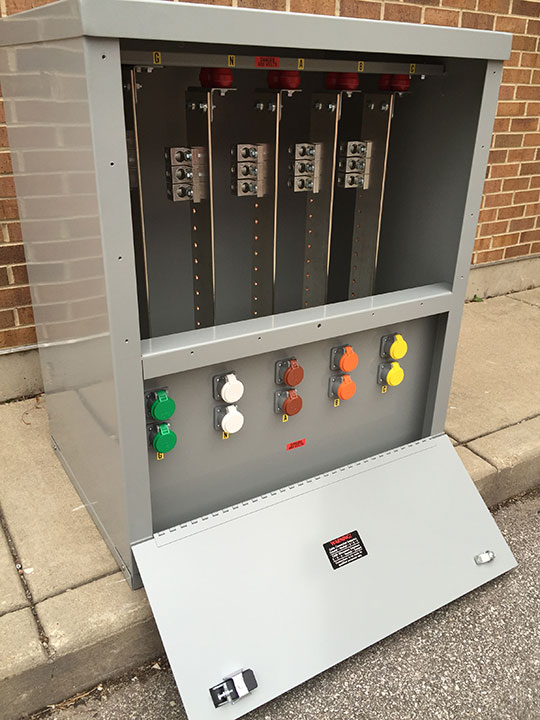

P08-5S-M69

Pad-mount, 800A, Cam-Loks. Options: Cam-Lok snap covers, powder coat finish.

P08-5S-M69-01
P08-5S-M69-02
P08-5S-M69-03
P08-5S-M69-04
P08-5S-M69-05
P08-5S-M69-06
P08-5S-M69-07
P08-5S-M69-08
P08-5S-M69-09
P08-5S-M69-10

[Show slideshow]

Back to Top

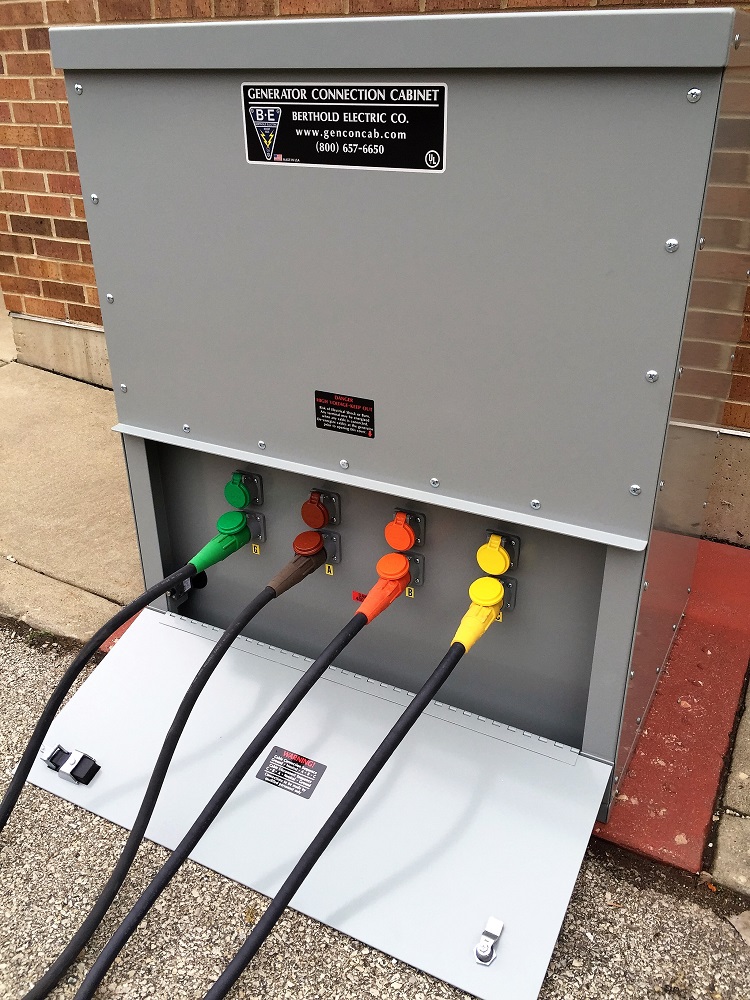

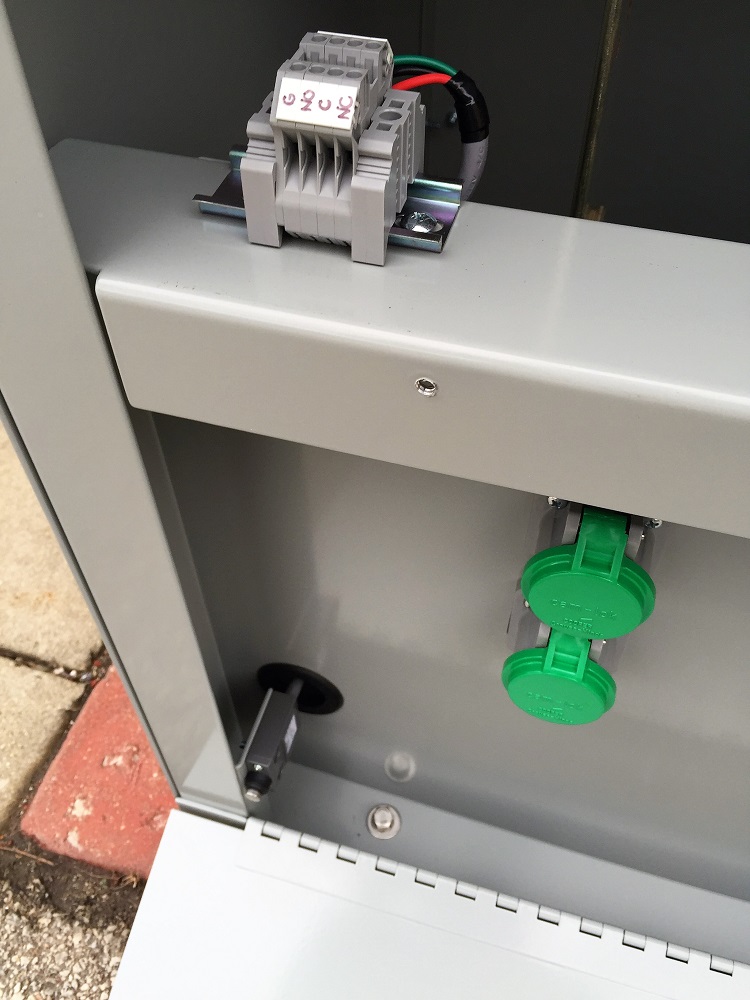

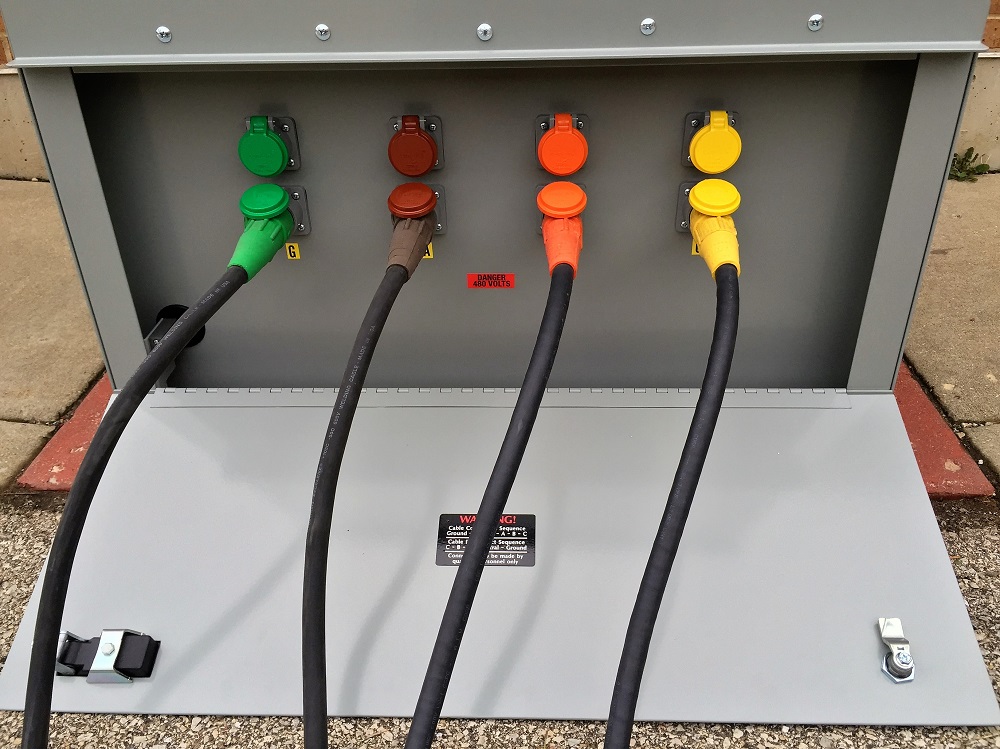

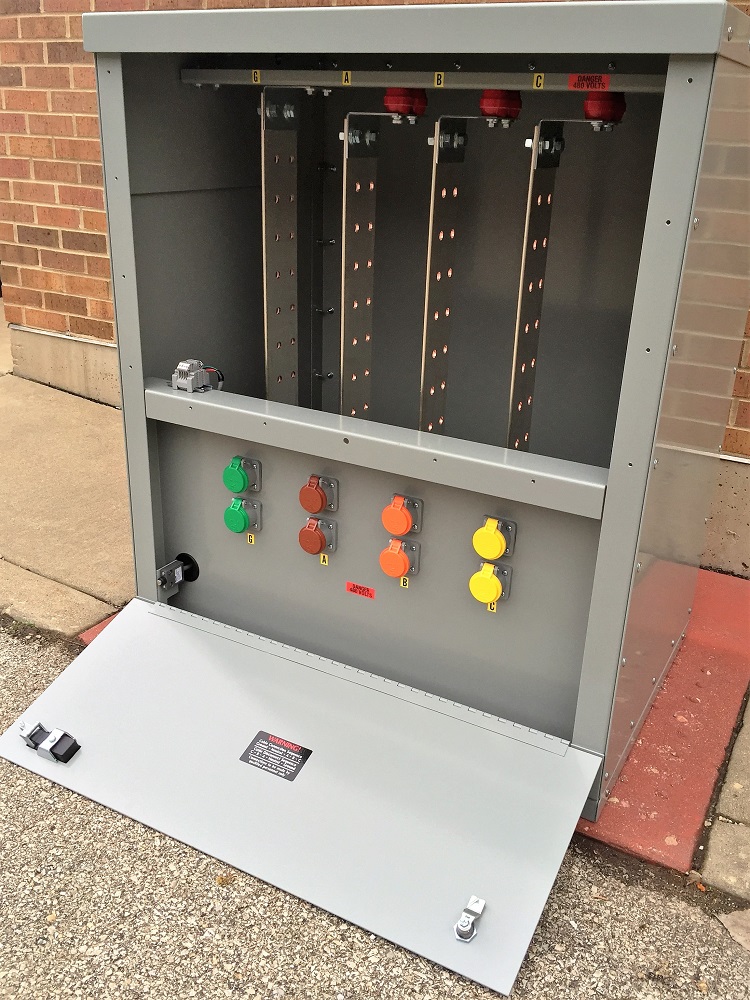

P08-4P-M169

Pad-mount, 800A, Cam-Loks. Options: Micro switch, Cam-Lok snap covers, powder coat finish.

IMG_5210
IMG_5213
IMG_5190
IMG_5191

[Show slideshow]

Back to Top

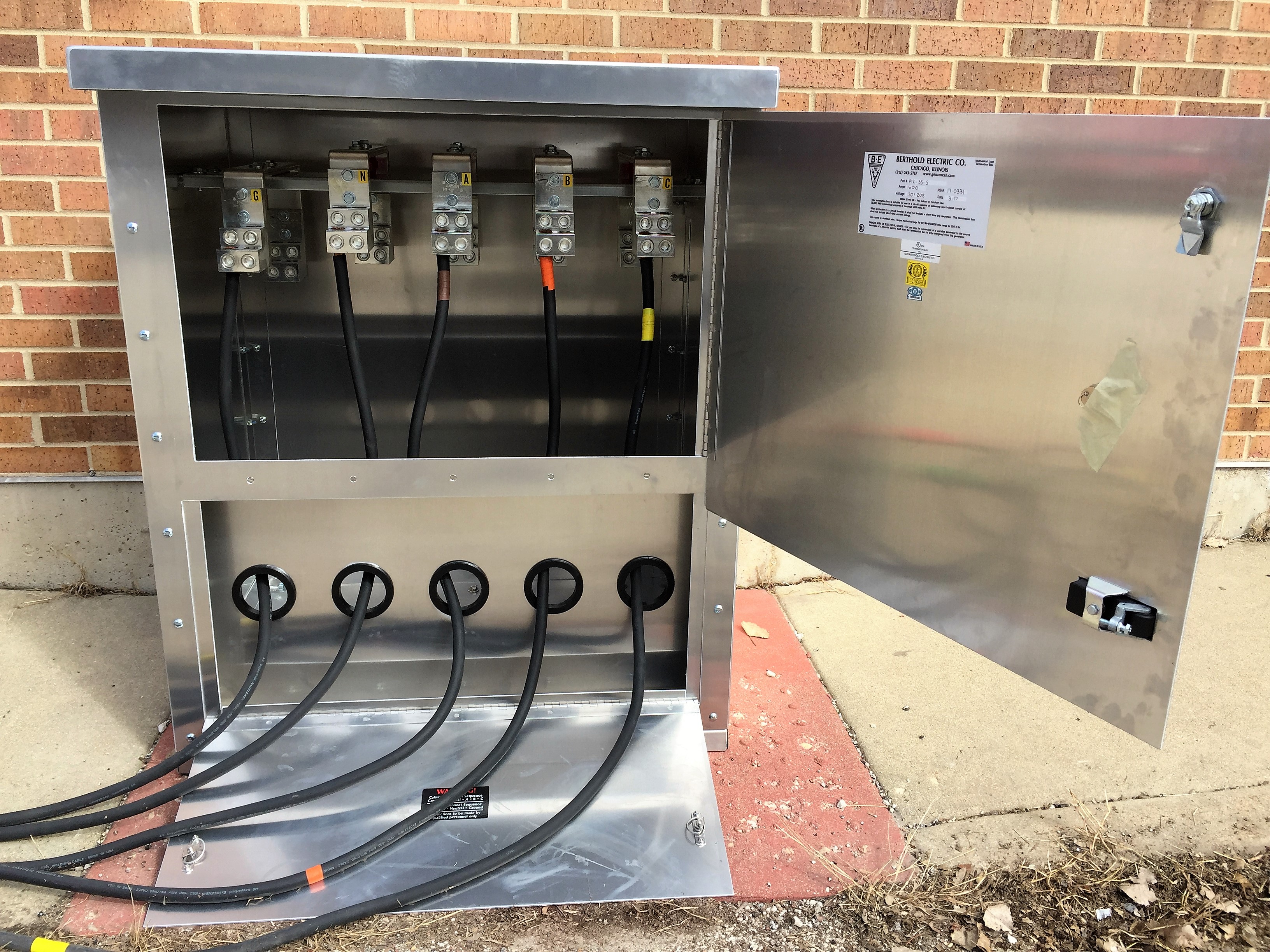

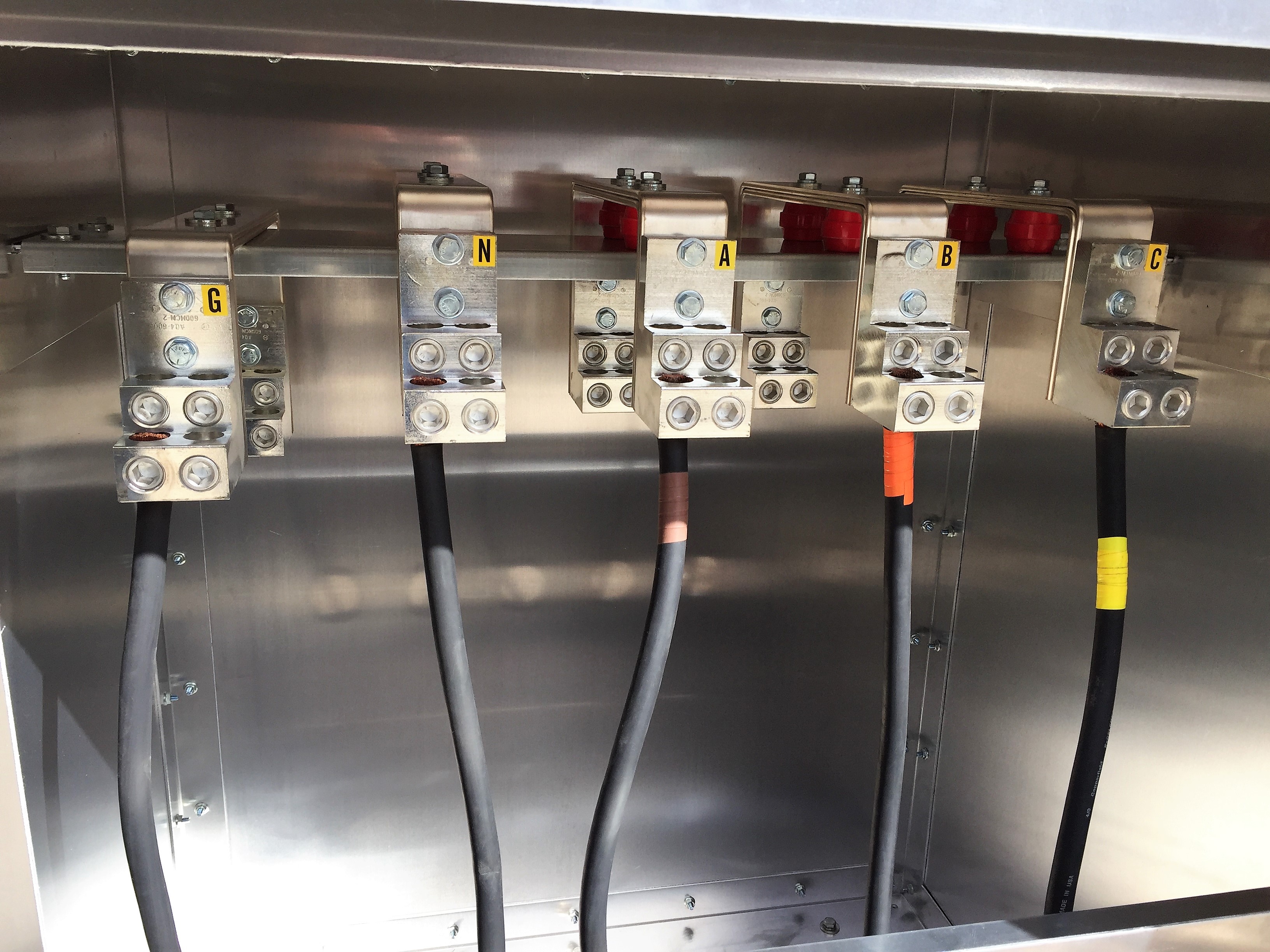

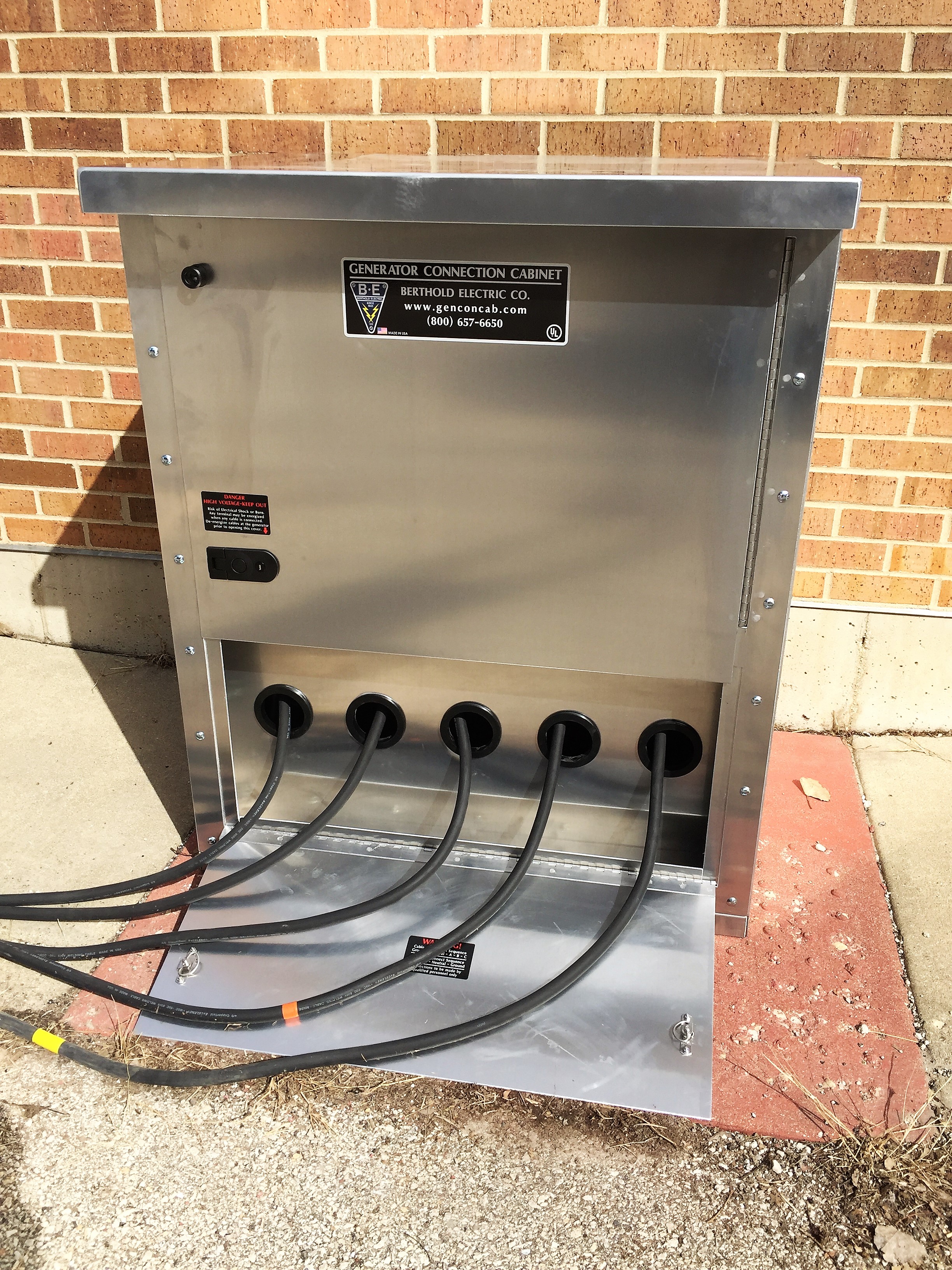

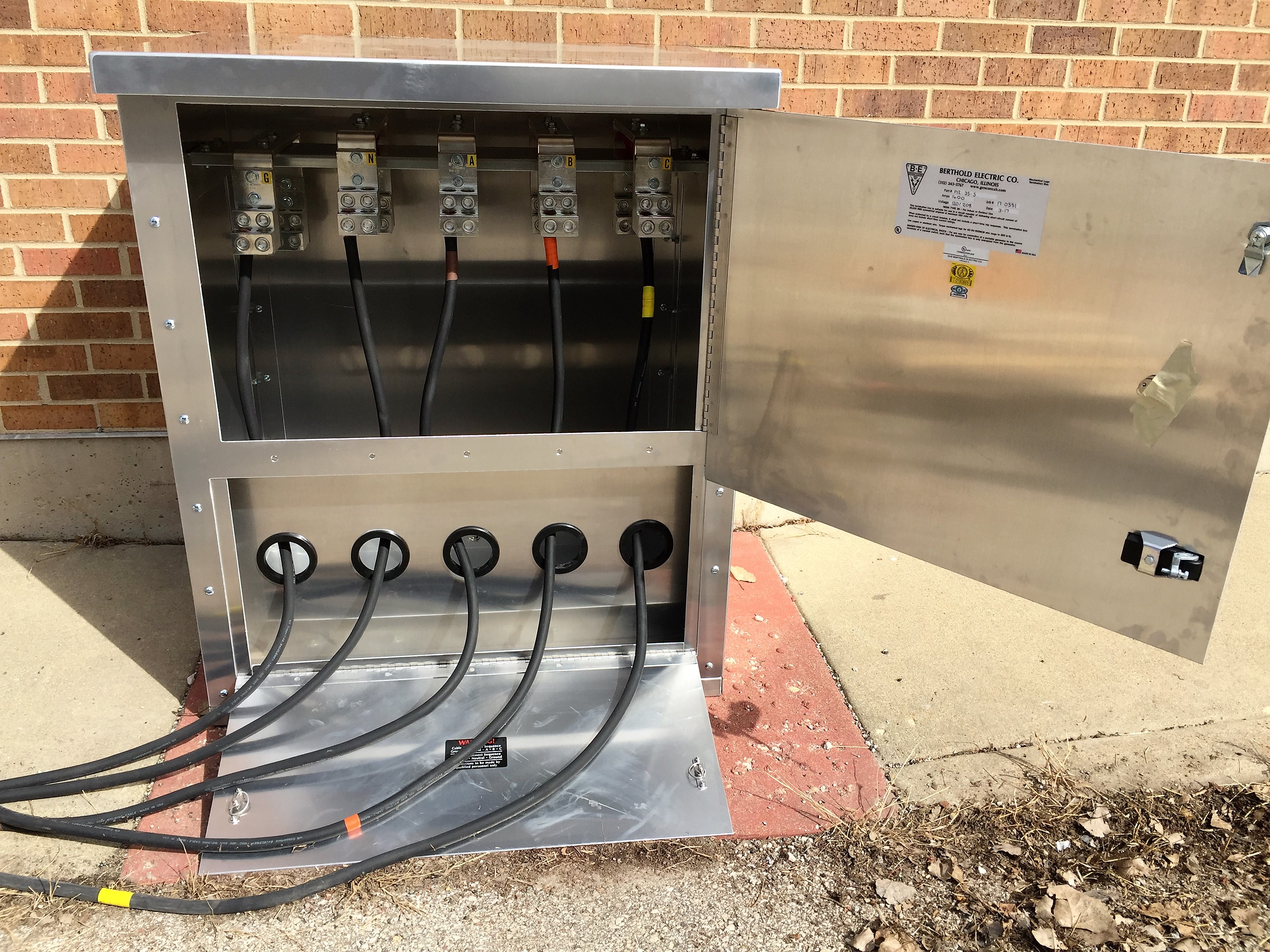

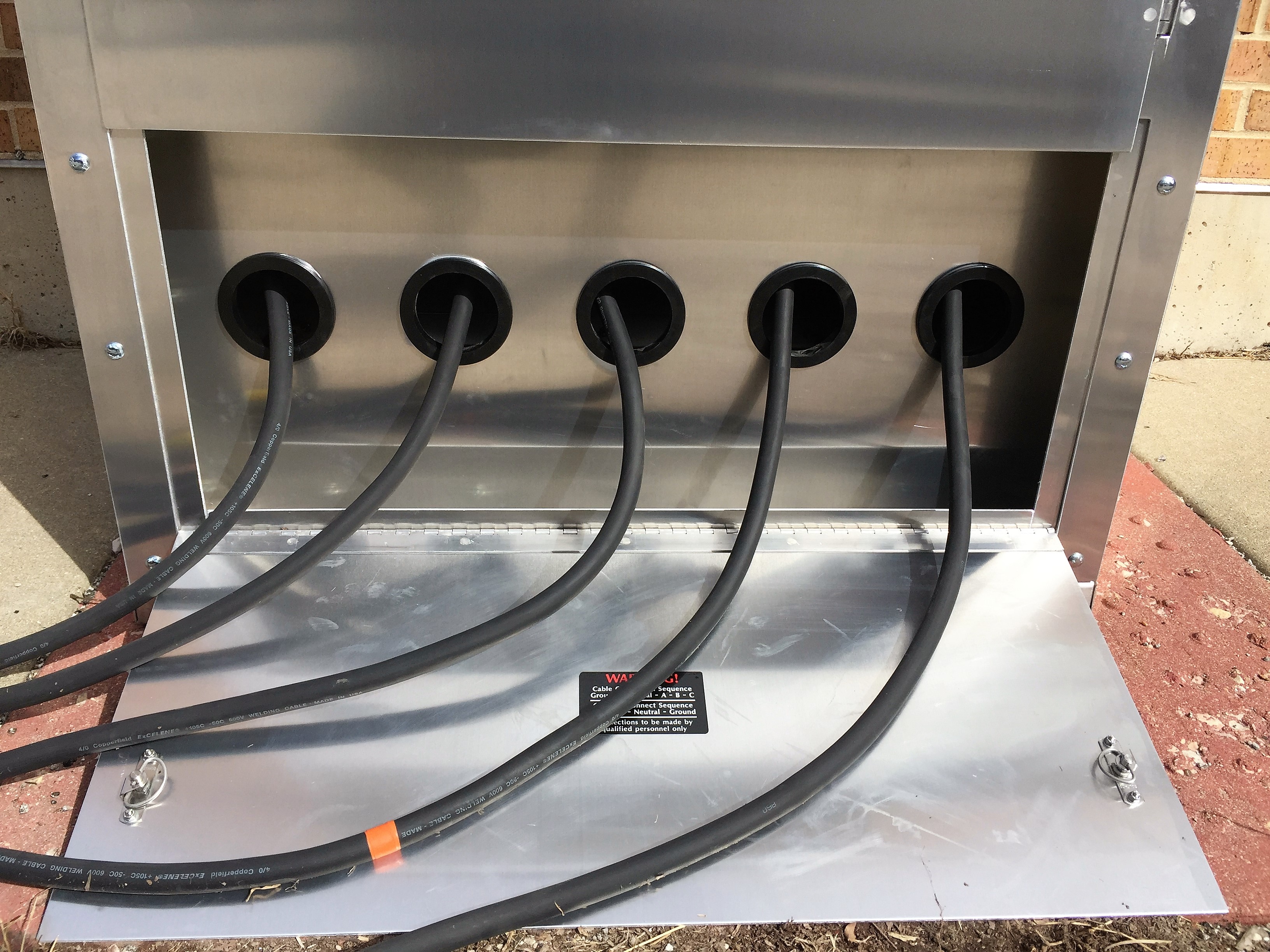

P12-3S-S

Pad-mount, 1200A, Mechanical Lugs. Options: None (standard bare unpainted aluminum cabinet).

IMG_7414
IMG_7411
IMG_7408
IMG_7415
IMG_7413

[Show slideshow]

Back to Top

Product Specifications, Diagrams and Options for the Generator Connection Cabinet

Suggested Specifications
  • Generator Connection Cabinets shall be Underwriters Laboratories, Inc. listed under UL 1008: Transfer Switch Equipment.
  • Enclosure shall be provided with SouthCo lockable latches on the Cam-Lok access door.
  • Internal bus shall be sized for 1000A/sq. in. ampacity, and bus work shall be supported with UL Recognized Component (QEUY2) insulators.
  • Enclosure shall be either stand alone pad mount or wall mount NEMA 3R, aluminum or stainless steel construction.
  • Generator connection cabinets shall be manufactured by Berthold Electric Company of Chicago, Illinois.

Download detailed specifications for Cam-Loks and Mechanical Lugs here:

Cam-lok Spec Sheet
Mechanical Lug Spec Sheet
System Application Diagrams

These diagrams show five examples of common connection configurations for Berthold Electric Company’s Generator Connection Cabinets. You can also quickly view one-line diagrams online here and download individual PDF sheets.

Download PDF One-Lines #1-5
Options for Generator Connection Cabinets

Options for Generator Connection Cabinets.

View the Options Gallery

Please feel free to contact our engineering staff if you would like assistance in customizing your specification for the Berthold Generator Connection Cabinet. You can also call us toll-free at 800.657.6650 for application assistance.
