Sample custom generator connection cabinet configurations. These units were custom designed and built for special applications where project plans and specifications called for a unique configuration. Click on any image to view full-size.
Quick Links: P12-5S-M3467912 with breaker | P16-5S-M1012 with disconnect switch |W04-3S-M9CB4 with breaker | W08-5S-M9 with bottom conduit entry | W32-5S-F10 through-wall flush | Product Specifications & Additional Information

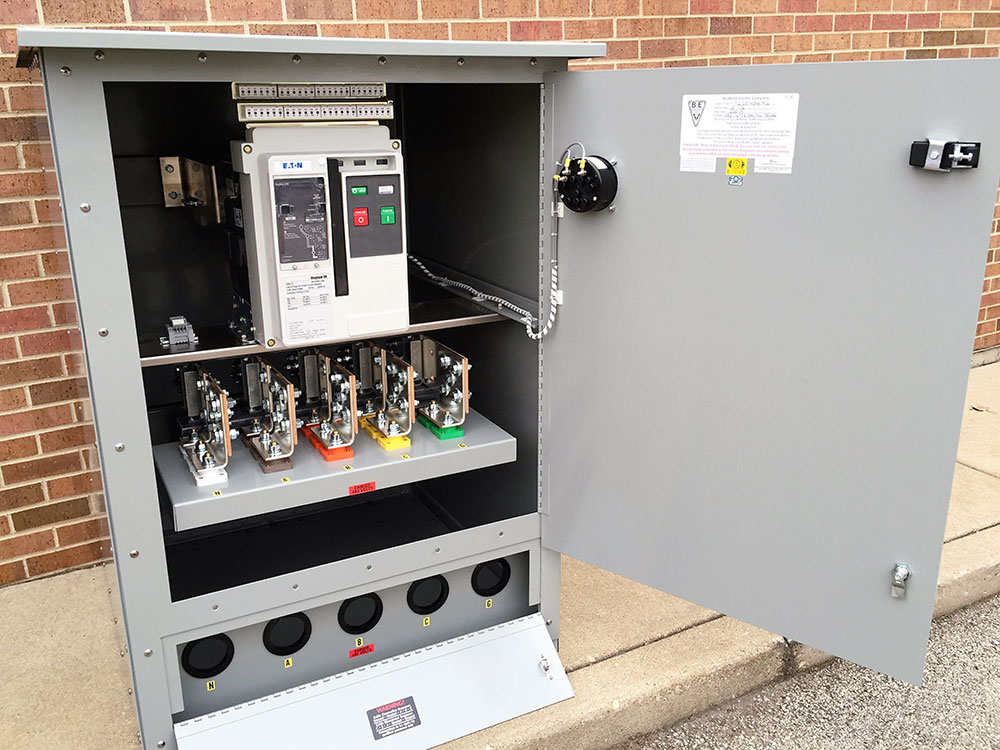

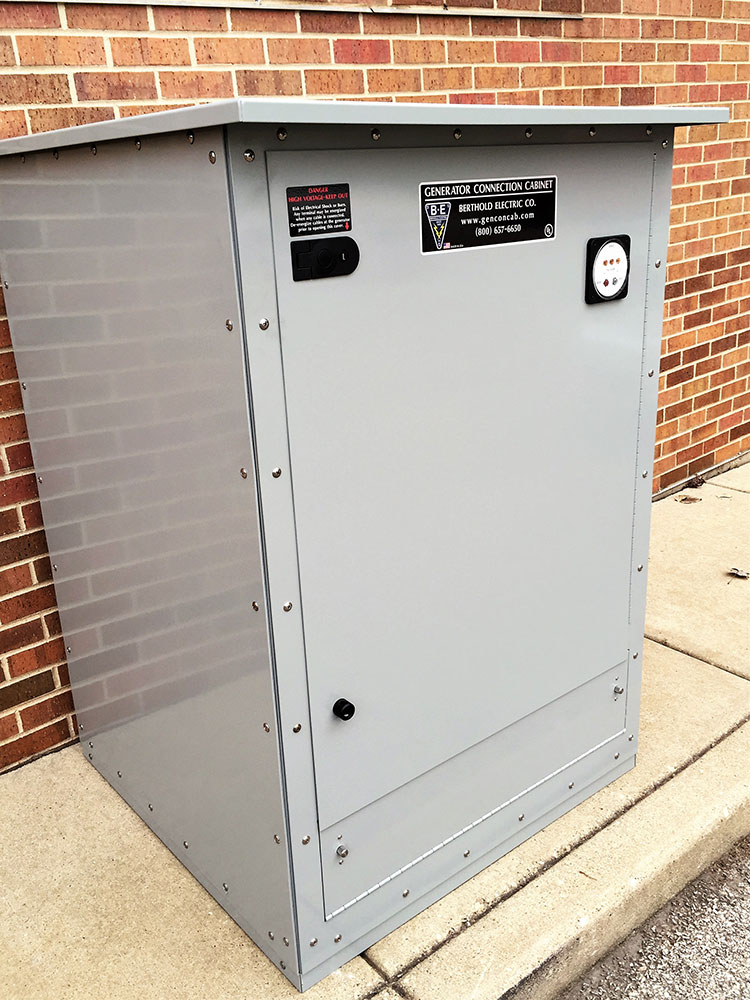

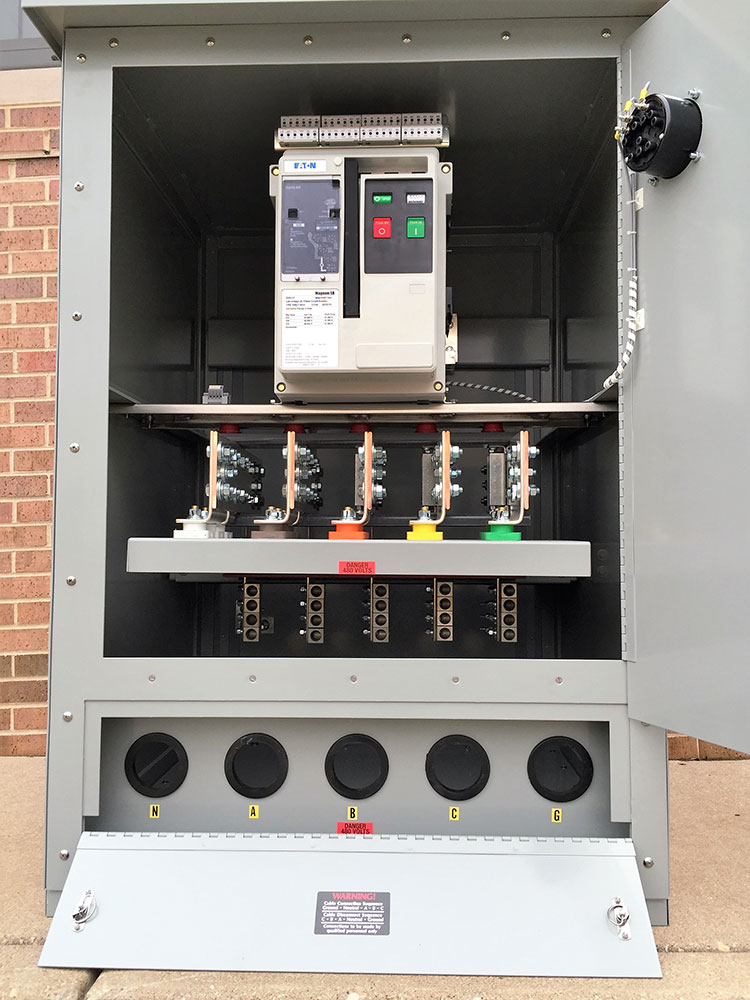

P12-5S-M3467912 with breaker
Pad-mount, 1200A, Cam-Loks. Options: Phase rotation meter, security cabinet, Cam-Lok snap covers, powder coat finish. Custom: Circuit breaker.

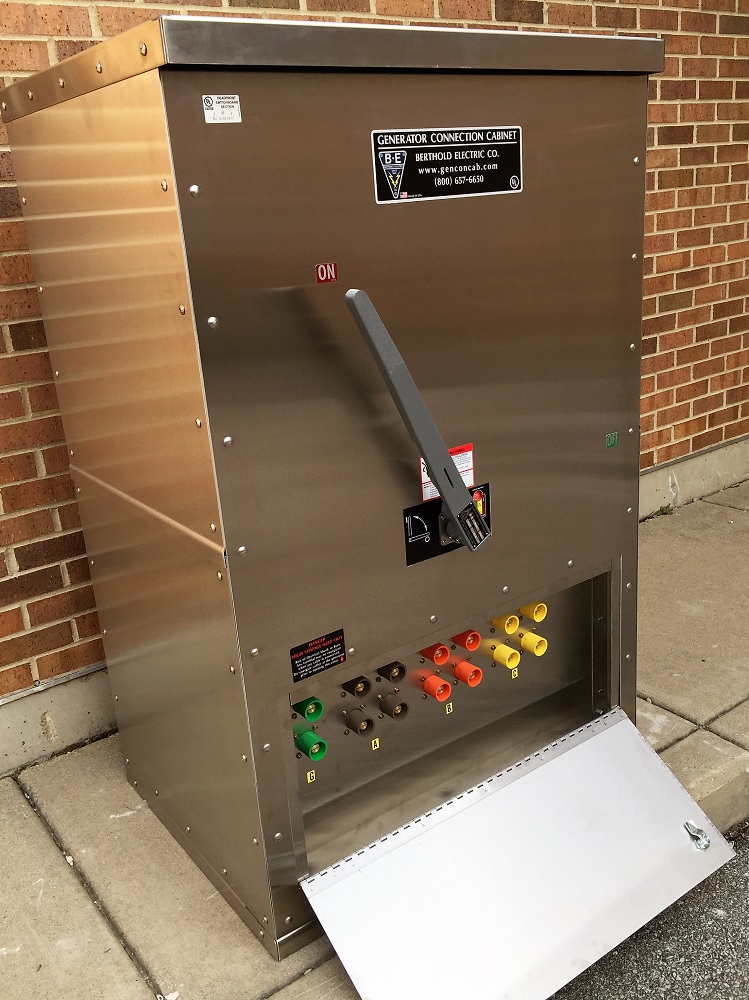

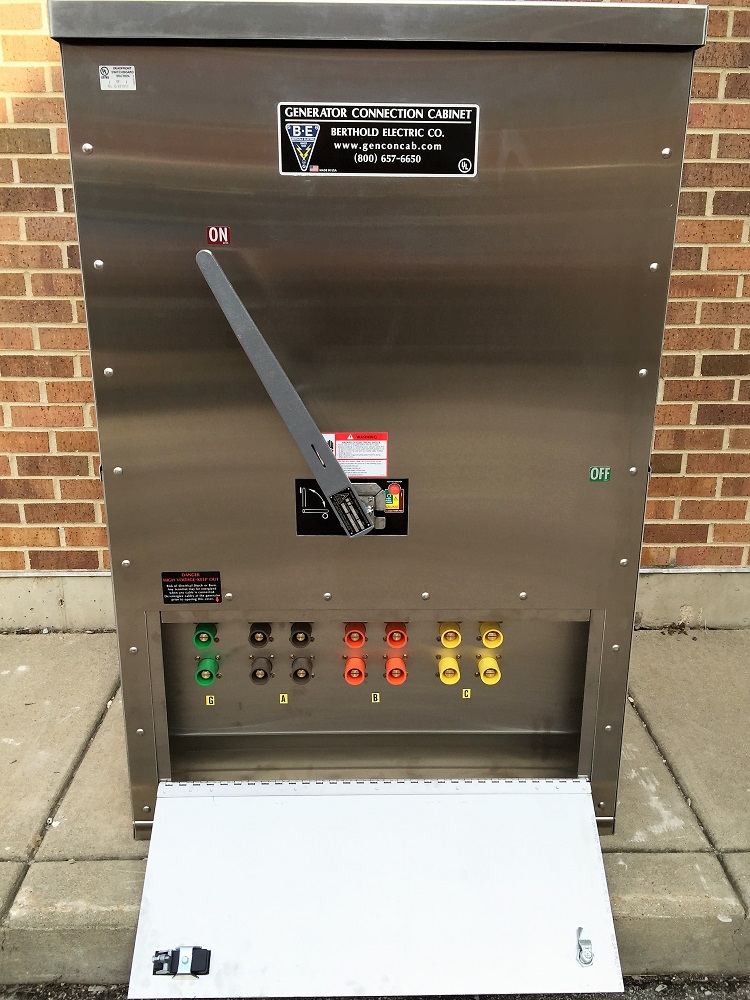

P16-5S-M1012DS with disconnect switch
Pad-mount, 1600A, Cam-Loks. Options: Stainless steel. Custom: Disconnect switch.

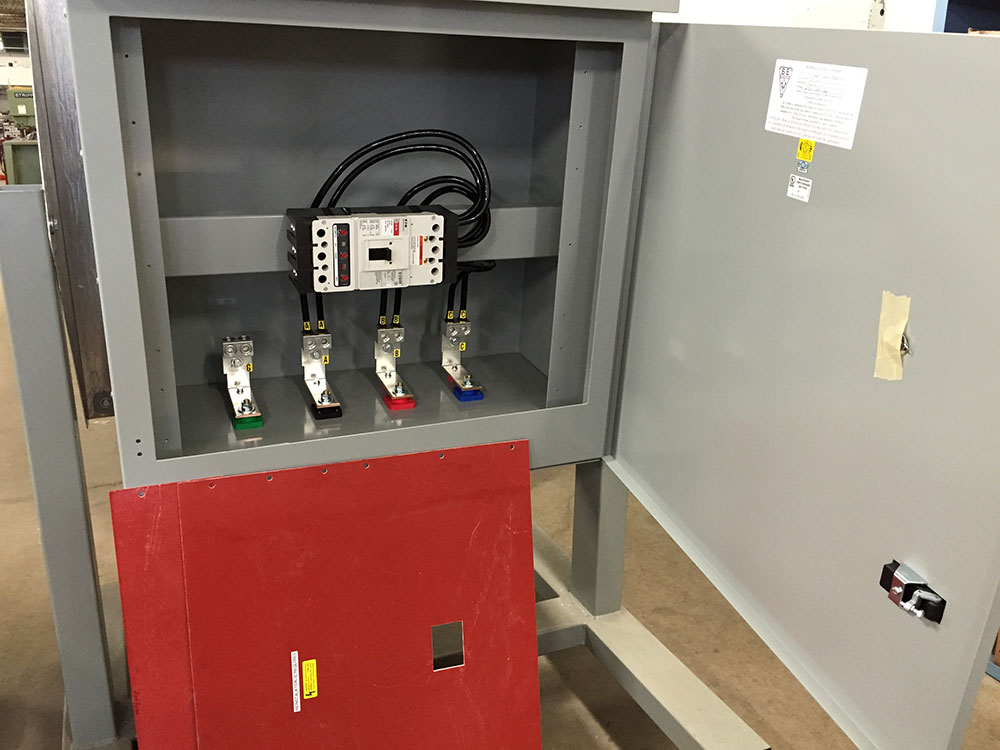

W04-3S-M9CB4 with breaker
Wall-mount, 400A, Cam-Loks. Options: Powder coat finish. Custom: Circuit breaker.

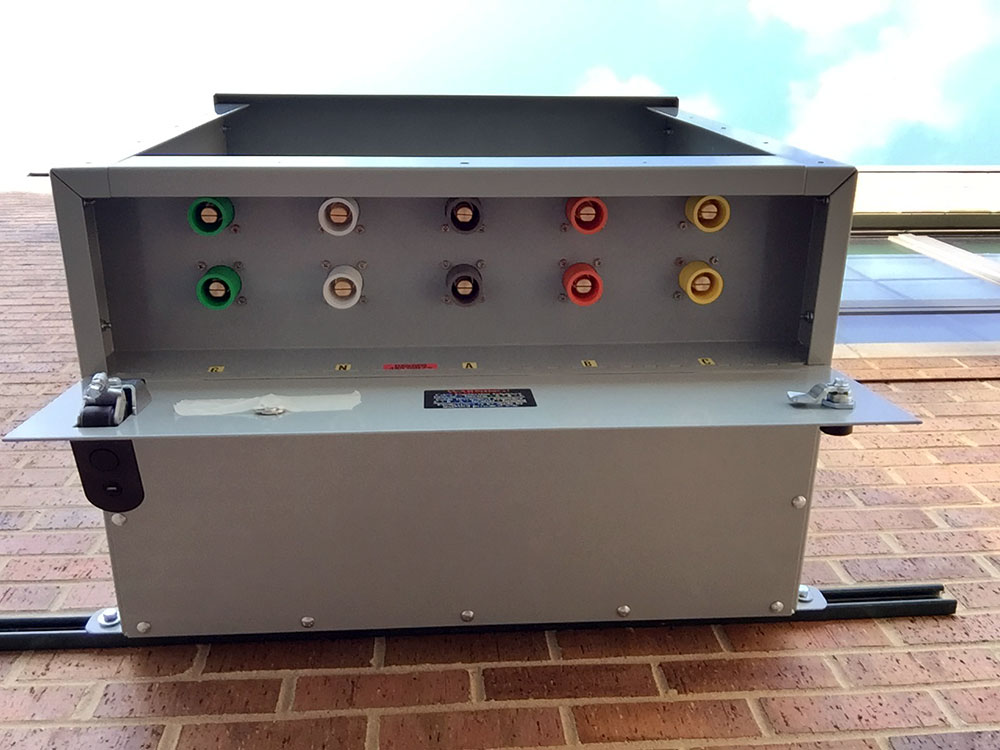

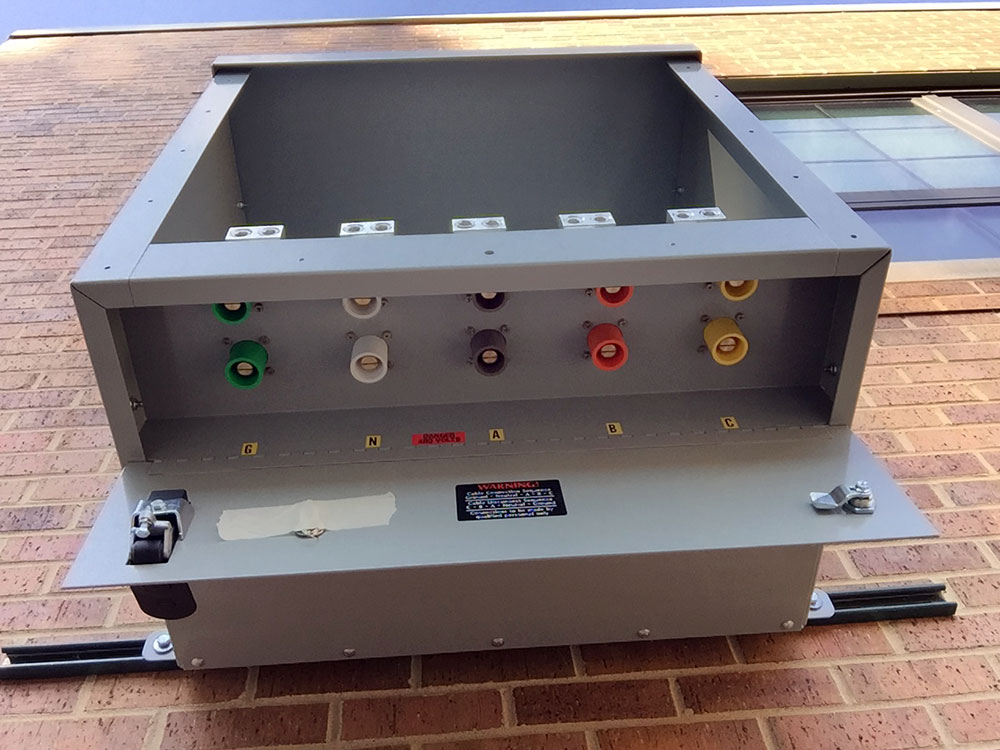

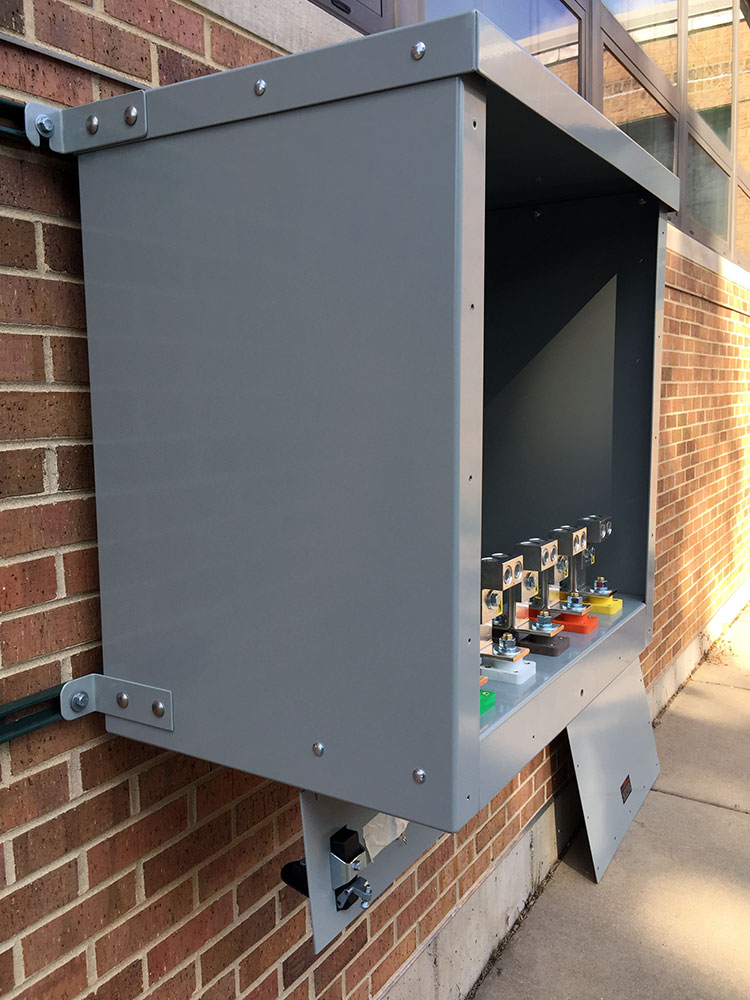

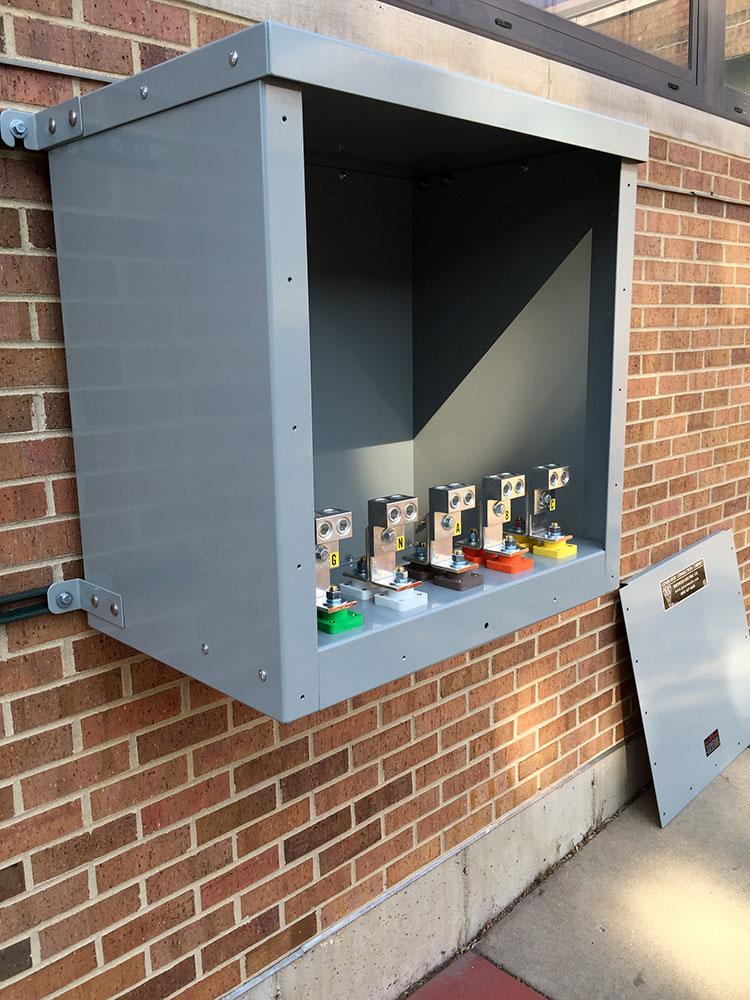

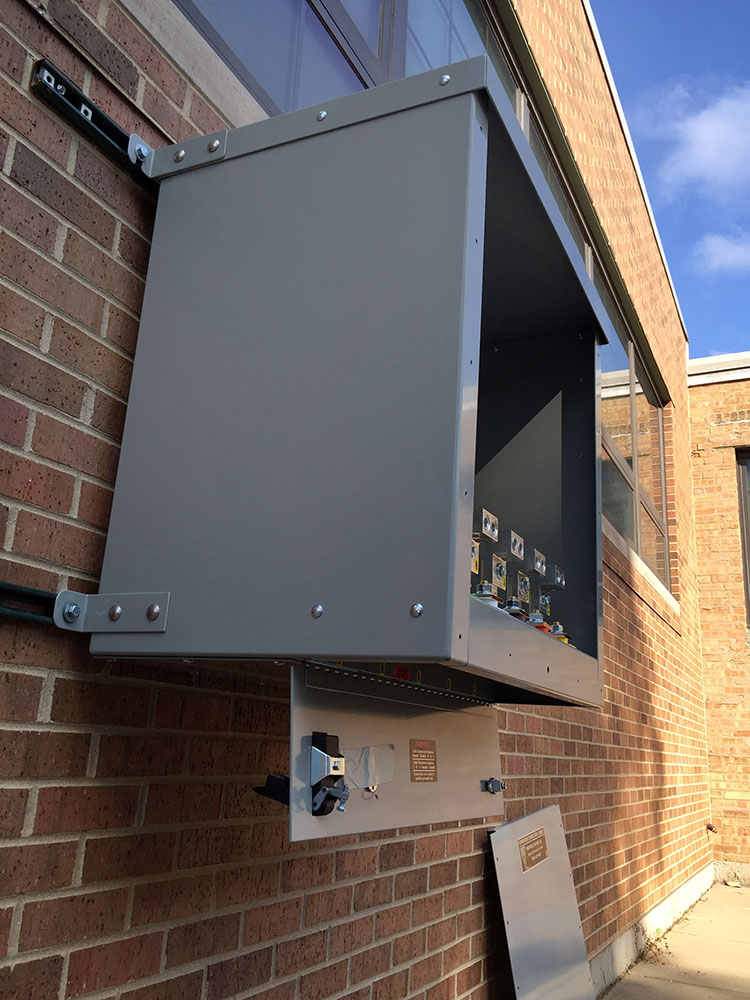

W08-5S-M9 with bottom conduit entry
Wall-mount, 800A, Cam-Loks. Options: Powder coat finish. Custom: Expanded enclosure with partial fixed bottom panel allows conduit entry from below.

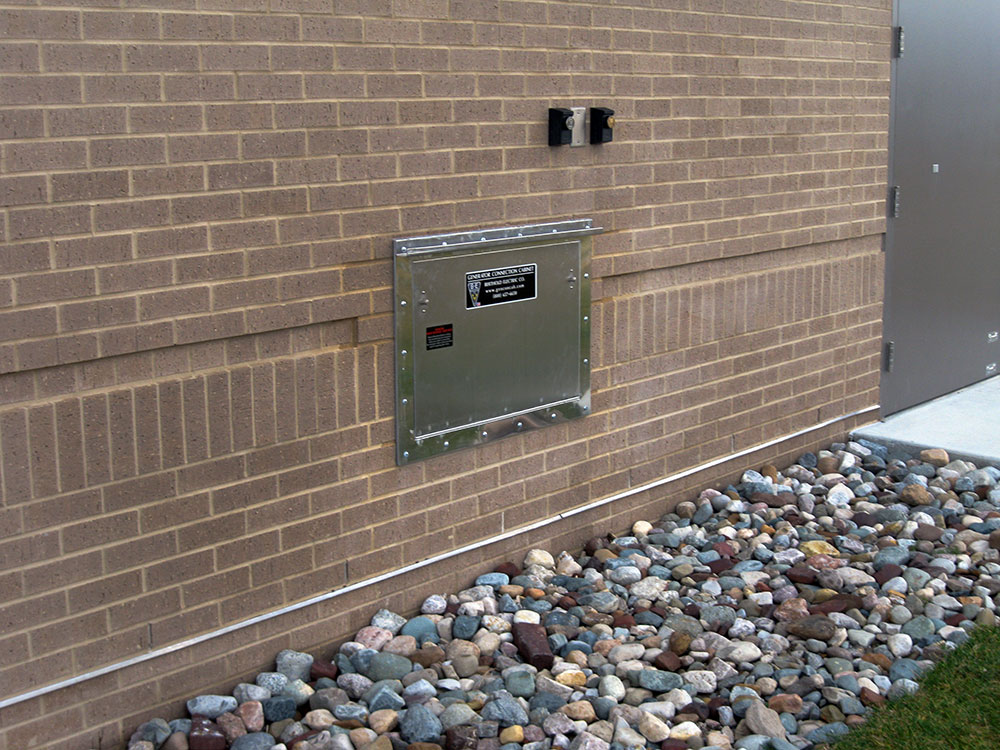

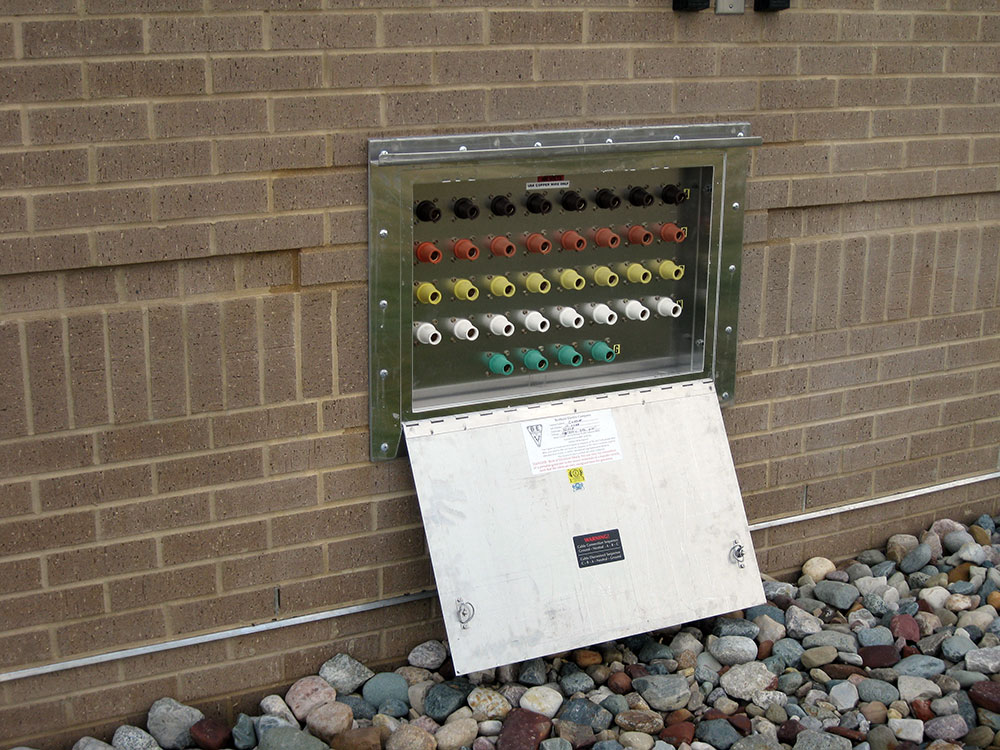

W32-5S-F10 through-wall flush
Wall-mount, 3200A, Cam-Loks. Options: Stainless steel. Custom: Flush mount through-wall design.
